Agrega Açısallık ( Köşelilik ) Aparatı

0 out of 5

( Henüz değerlendirme yapılmadı. )

STANDARTLAR : AASHTO T 304 , ASTM C1252

İri Agrega Açısallık Aparatı, iri agreganın sıkıştırılmamış boşluk içeriğini ölçer.

Test aparatının Sıcak Karışım Asfalt (HMA) kaplama için agregaların değerlendirilmesi önerilir.

Kategoriler: Agrega Etiketler: AASHTO T 304, Agrega Açısallık Aparatı, Agrega Boşluk İçeriği Ölçme, Agrega Deney Cihazları, Agrega Test Cihazları, Agrega Testleri, ASTM C1252, İri Agregalar, Malzeme Test Cihazları, Parsros, Unitestmach

Açıklama
Değerlendirmeler (0)
TEKNİK ÖZELLİKLER

Açıklama

Ürün kodu	Ürün Özellikleri
PRS-ACAAAPP	Coarse Aggregate Angularity Apparatus
PRS-AFAAAPP	Fine Aggregate Angularity Apparatus
PRS-AFAAAPP-SO	Fine Aggregate Angularity Apparatus w/ Strike-Off Guide
PRS-AFAAAPP-1	Glass Plate for Fine Aggregate Void Content
PRS-AFAAAPP-2	Measure for Fine Aggregate Void Content ,100 ml
PRS-AFAAAPP-3	Corrosion-Resistant, Stainless Steel Pan
PRS-AFAAAPP-4	Flat Edged Spatula
PRS-ACAAAPP-1	Coarse Aggregate Void Content Stainless
PRS-ACAAAPP-2	Coarse Aggregate Void Content Glass Plate
PRS-ACAAAPP-3	Steel Material Handling Pan
PRS-ACAAAPP-4	Galvanized Iron Pan

STANDARTLAR : AASHTO T 304 , ASTM C1252

PRS-ACAAAPP Coarse Aggregate Angularity Apparatus measures uncompacted void content of coarse aggregate.

The testing apparatus is recommended to evaluate aggregates for Hot Mix Asphalt (HMA) pavement.

Gradation and void content data provide an indication of angularity, sphericity and surface texture that can be related to permanent deformation and fatigue cracking of asphalt.

Included Items

Coarse Aggregate Angularity Apparatus

Stainless Measure

Strike-off Bar

Glass Plate for calibration

Accessories

Coarse Aggregate Void Content Stainless Measure is easily secured to Apparatus stand for measuring during testing

Coarse Aggregate Void Content Glass Plate used in calibrating the stainless steel measure and available as replacement or additional plate

Steel Material Handling Pan for use weighing and loading coarse aggregate

Galvanized Iron Pan for collecting overflow content

PRS-AFAAAPP The Fine Aggregate Angularity Apparatus determines the uncompacted void content of fine aggregates to determine angularity

and sphericity properties that affect workability of mix designs.

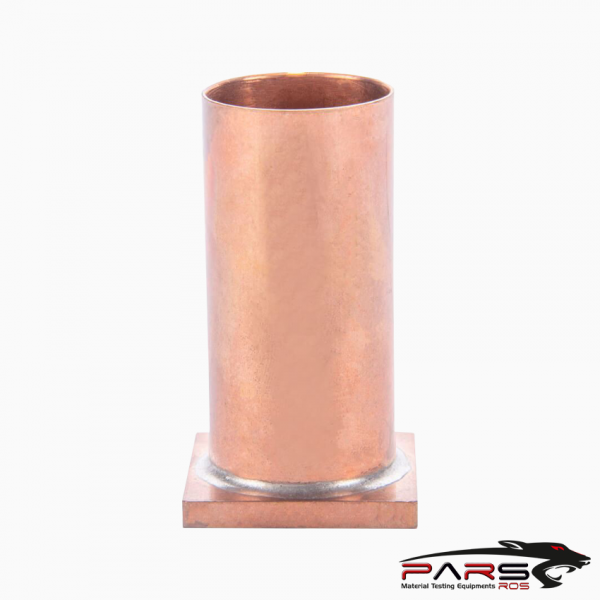

PRS-AFAAAPP Includes a 100ml copper Cylindrical Measure, Funnel with specified hopper, Funnel Stand and a Glass Plate for calibration.

PRS-AFAAAPP-SO features a strike-off guide for exact alignment of the spatula blade to the top of the Cylindrical Measure.

This has been experimentally shown to improve repeatability of test

results between operators as well as laboratories. A 100ml copper Cylindrical Measure, specified Funnel, Funnel Stand and a Glass Plate for calibration are included.

Included Items

Fine Aggregate Angularity Apparatus

100ml copper Cylindrical Measure Funnel

Funnel Stand

Glass Plate for calibration

Accessories

Corrosion-Resistant, Stainless Steel Pan meets ASTM and AASHTO Uncompacted Void Content of Fine Aggregate test methods

100ml Measure for Fine Aggregate Void Content for precise testing

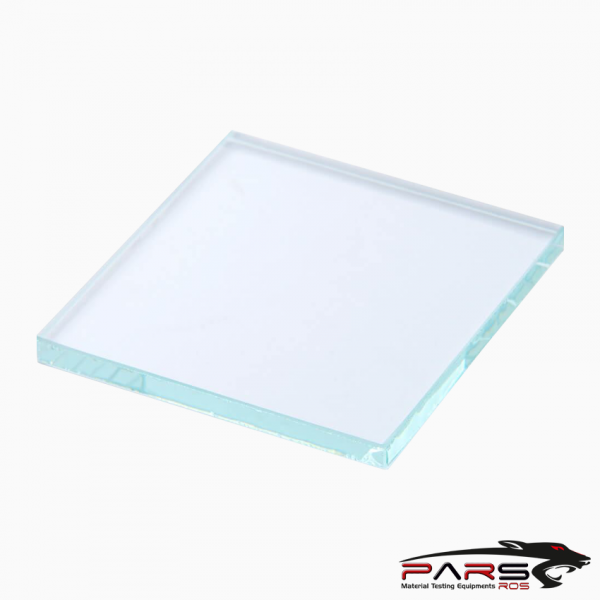

Fine Aggregate Void Content Glass Plate calibrates void content measure

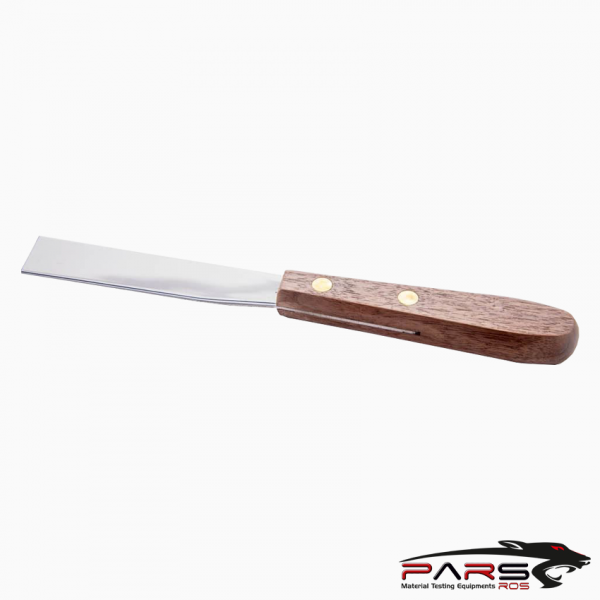

Flat Edged Spatula for striking off volumetric Measure
