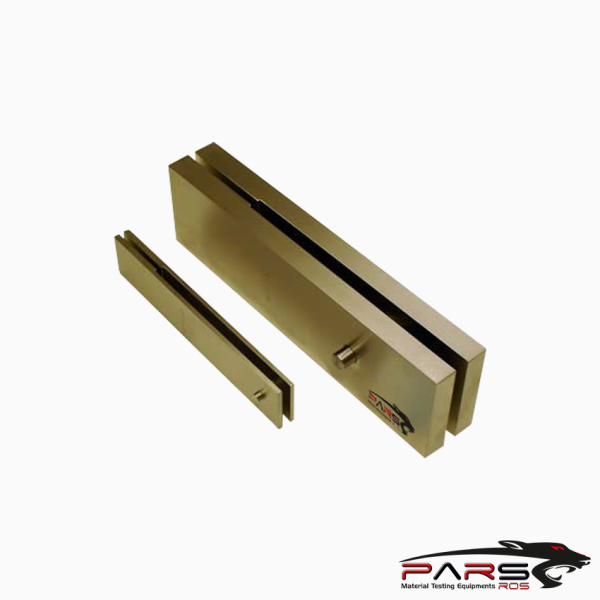

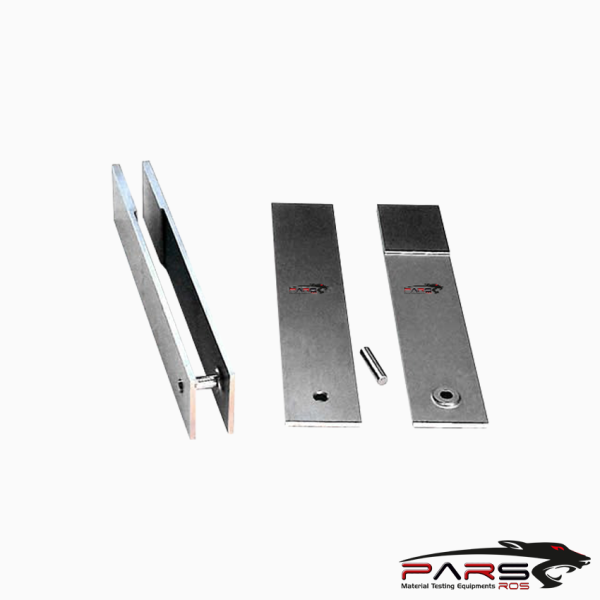

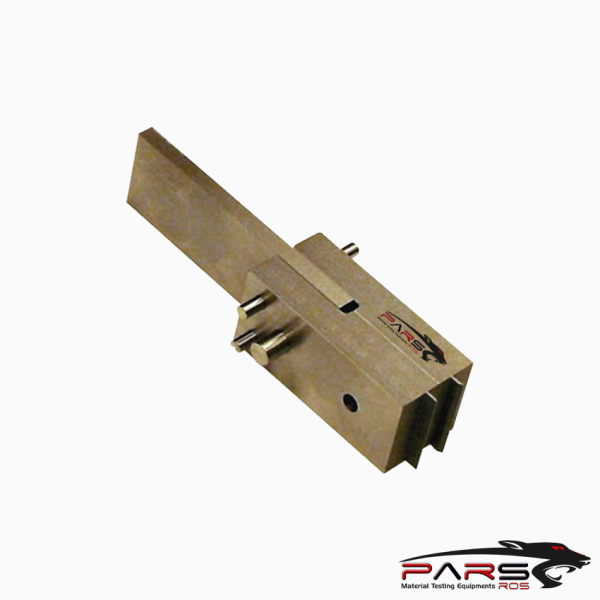

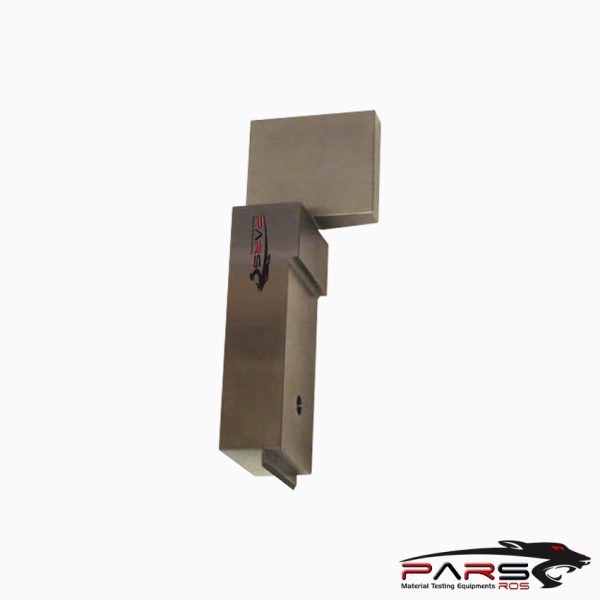

ParsRos ASTM D5961 Test Fixture
ParsRos ASTM D5961 Test Fixture 2
ParsRos ASTM D5961 Test Fixture 3
ParsRos ASTM D5961 Test Fixture 4
ParsRos ASTM D5961 Test Fixture 5
Airbus AITM 10009 Test Fikstürü - Görsel 1
Airbus AITM 10009 Test Fikstürü - Görsel 2
Airbus AITM 10009 Test Fikstürü - Görsel 3
Airbus AITM 10009 Test Fikstürü - Görsel 4
Airbus AITM 10009 Test Fikstürü - Görsel 5

Airbus AITM 10009 Test Fikstürü

IEC 61386 1 Test Fixture 3 1 IEC 61386-1 Test Fikstürü
NASM 1312 13 Test Fixture NASM 1312-13 Test Fikstürü
0 out of 5

Airbus AITM 10009 – The upper end of the bearing-strength test fixture is mounted in the associated specimen grips.

Please Contact With Us For More Information

Kategoriler: Etiketler: , , ,

Açıklama

Airbus AITM 10009

Determination of Bearing Strength by Bolt Bearing Configuration



The upper end of the bearing-strength test fixture is mounted in the associated specimen grips.

The upper end of the specimen is mounted in the bearing-strength test fixture and the lower end is clamped in parallel-clamping grips



***PARSROS  offers several types of grips and fixtures which will enable you to perform a variety of tests

  that are accurate and repeatable.

Bearing Strength Test Fixture for Tests to AITM 1-0009

Test load, max. 30 Kn

Dimensions

Height  : 160 mm Width : 45 mm Depth : 47 mm

Specimen: Length, min. 150 mm Width 45 mm thickness 2 to 6 mm

Ambient temperature -55 to +250 °C

Weight, approx. 1 kg
