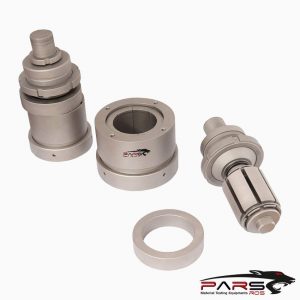

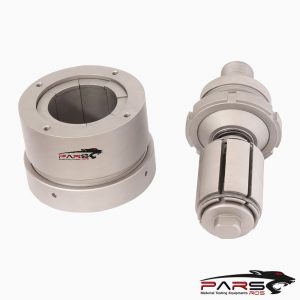

ASTM D2105  – Fiberglass Tensile Test Equipment

ASTM D2105  – This test method covers the determination of the comparative longitudinal tensile properties of fiberglass pipe when tested under defined

conditions of pretreatment, temperature, and testing machine speed.

Please Contact With Us For More Information

Category: Tags: , , , , , , , , , ,

Description

ASTM D2105 – Standard Test Method for Longitudinal Tensile Properties of “Fiberglass” Pipe and Tube



ASTM D2105  – Fiberglass Tensile Test Equipment

ASTM D2105  – This test method covers the determination of the comparative longitudinal tensile properties of fiberglass pipe when tested under defined

conditions of pretreatment, temperature, and testing machine speed.

Both glass-fiber-reinforced thermosetting-resin pipe (RTRP) and glass-fiber-reinforced polymer mortar pipe (RPMP) are fiberglass pipes.

NOTE 1: For the purposes of this standard, polymer does not include natural polymer.

This test method is generally limited to pipe diameter of 6 in. (150 mm) or smaller.

Larger sizes may be tested if required apparatus is available.

*** Before conducting ASTM D2105, it is important to read the entire specification. Standards can be obtained from appropriate standard authorities.

Significance and Use

Tensile properties include modulus of elasticity, yield stress, elongation beyond yield point, tensile strength, elongation at break, and energy absorption.

Materials possessing a low order of ductility may not exhibit a yield point. Stress-strain data at several levels of temperature, humidity, time, or other variables may be

needed to furnish reasonably accurate indications of the behavior of the material.

Tension tests may provide data for research and development, engineering design, quality control, acceptance or rejection under specifications, and for special

purposes

The tests cannot be considered significant for applications differing widely from the load-time scale of the standard test

Such applications require more suitable tests, such as impact, creep, and fatigue.

Referenced Documents

ASTM Standards

ASTM C33 Specification for Concrete Aggregates

ASTM D618 Practice for Conditioning Plastics for Testing

ASTM D638 Test Method for Tensile Properties of Plastics

ASTM D638M Test Method for Tensile Properties of Plastics (Metric)

ASTM D883 Terminology Relating to Plastics

ASTM D1600 Terminology for Abbreviated Terms Relating to Plastics

ASTM D3567 Practice for Determining Dimensions of Fiberglass (Glass-Fiber-Reinforced Thermosetting Resin) Pipe and Fittings

ASTM E4 Practices for Force Verification of Testing Machines

ASTM E83 Practice for Verification and Classification of Extensometer Systems

ASTM F412 Terminology Relating to Plastic Piping Systems



***PARSROS  offers several types of grips and fixtures which will enable you to perform a variety of tests

  that are accurate and repeatable.
