ASTM D3410 – Standard Test Method for Compressive Properties of Polymer Matrix

Description

ASTM D3410 – Standard Test Method for Compressive Properties of Polymer Matrix



ASTM D3410 | Composites | Shear Testing

ASTM D3410 is a testing standard designed to measure the compressive properties of polymer matrix composite materials reinforced by high-modulus fibers.

This test procedure introduces the compressive force into the specimen through shear at grip interfaces.

***  It is commonly used for composites made from unidirectional tape, textiles, short fibers, and it can be adapted for similar products.

This test method measures the ultimate compressive strain, the compressive modulus of elasticity, Poisson’s ratio, and transition strain.

---

Solution

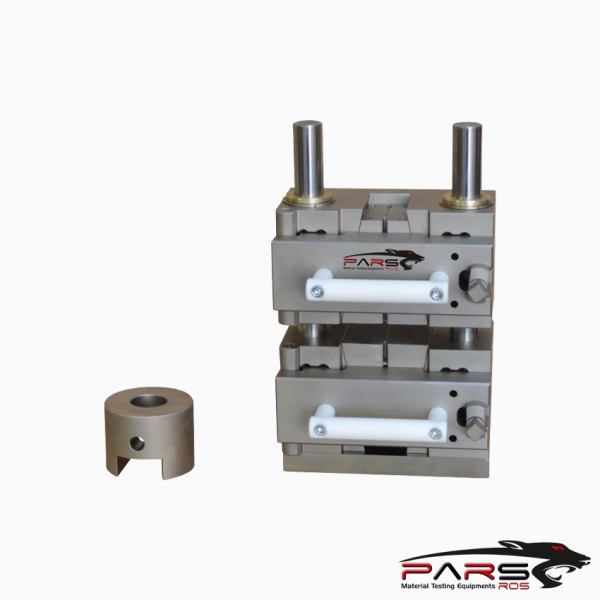

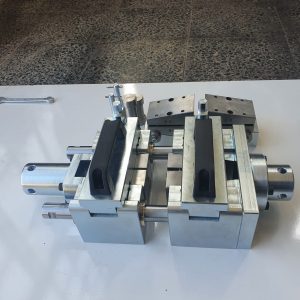

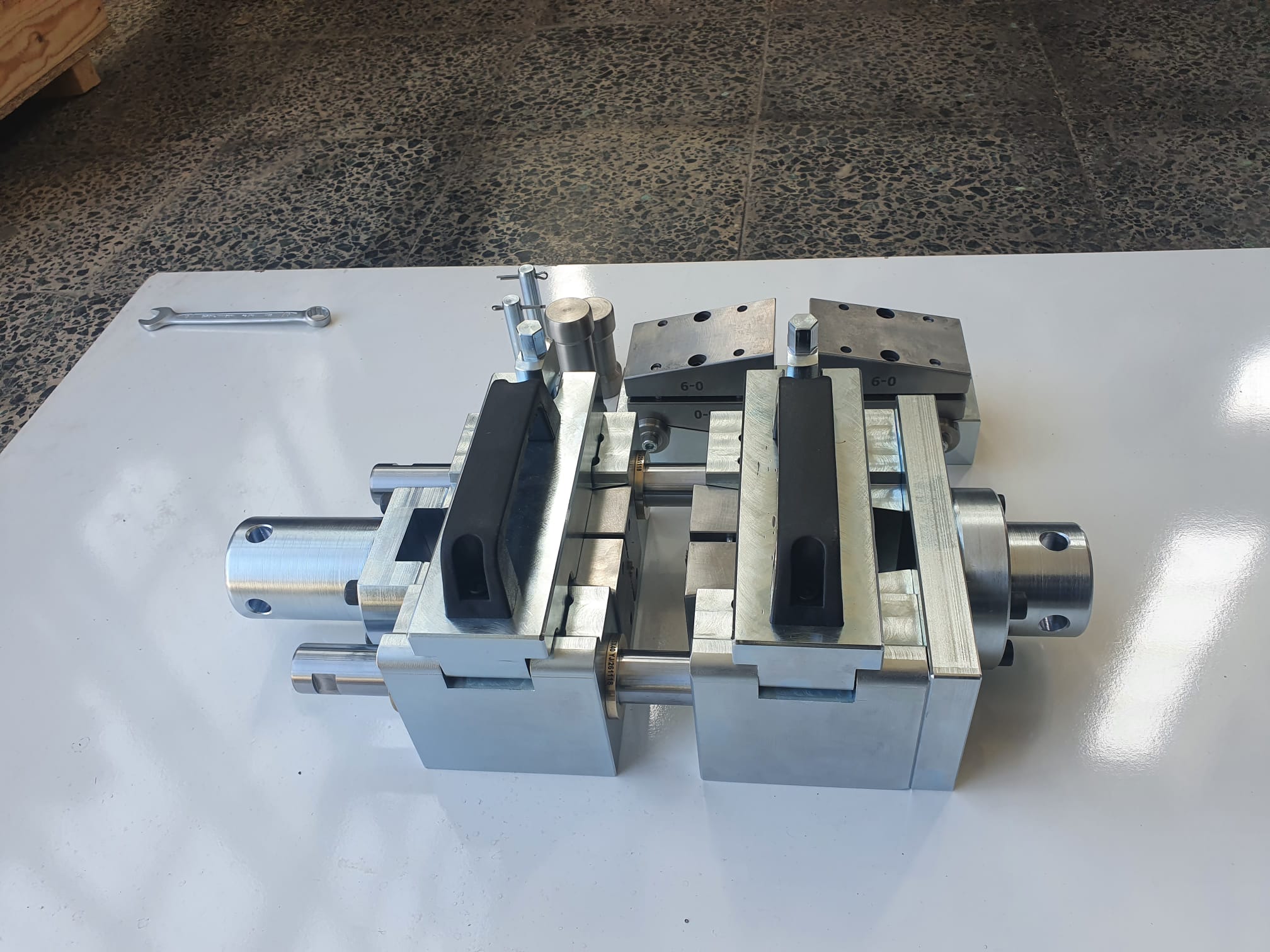

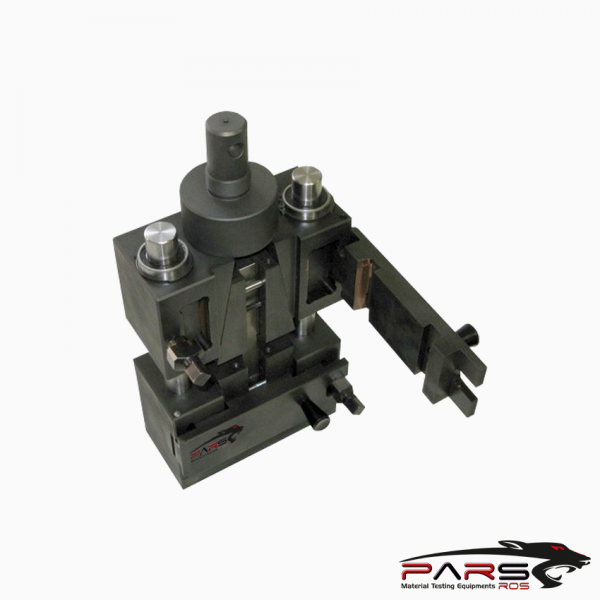

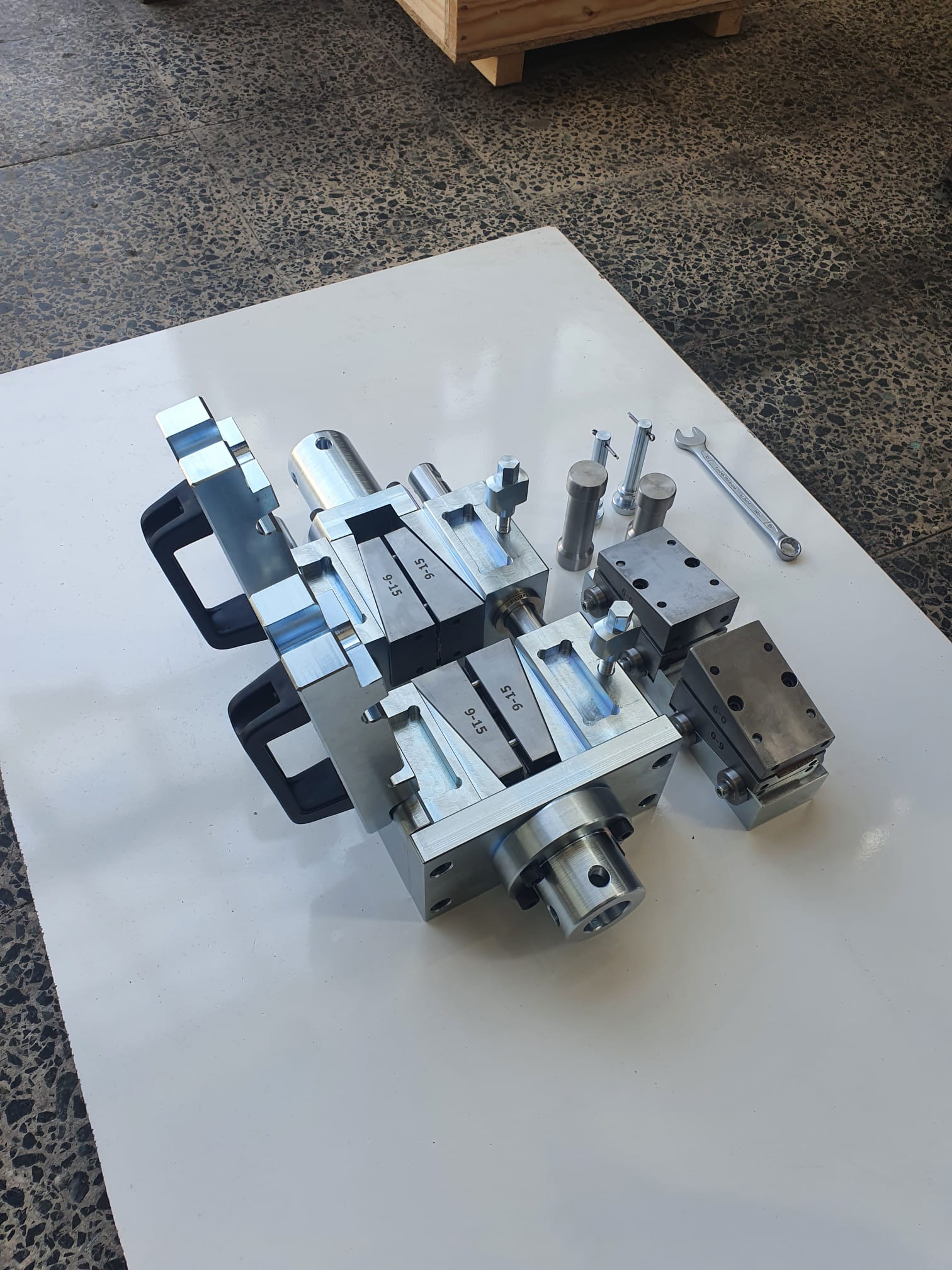

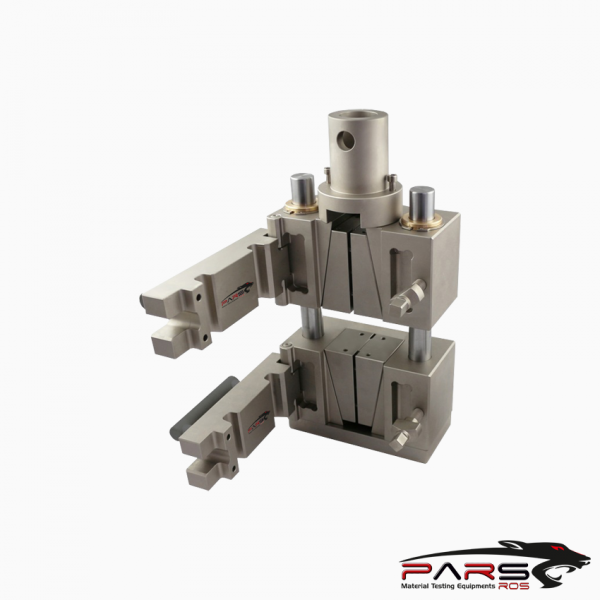

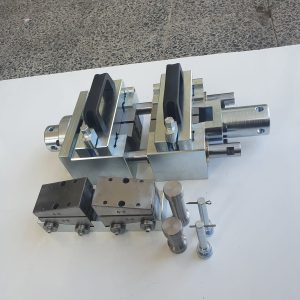

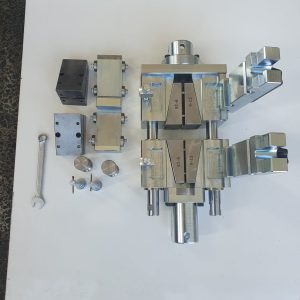

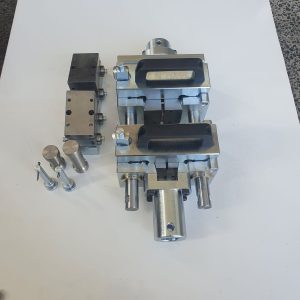

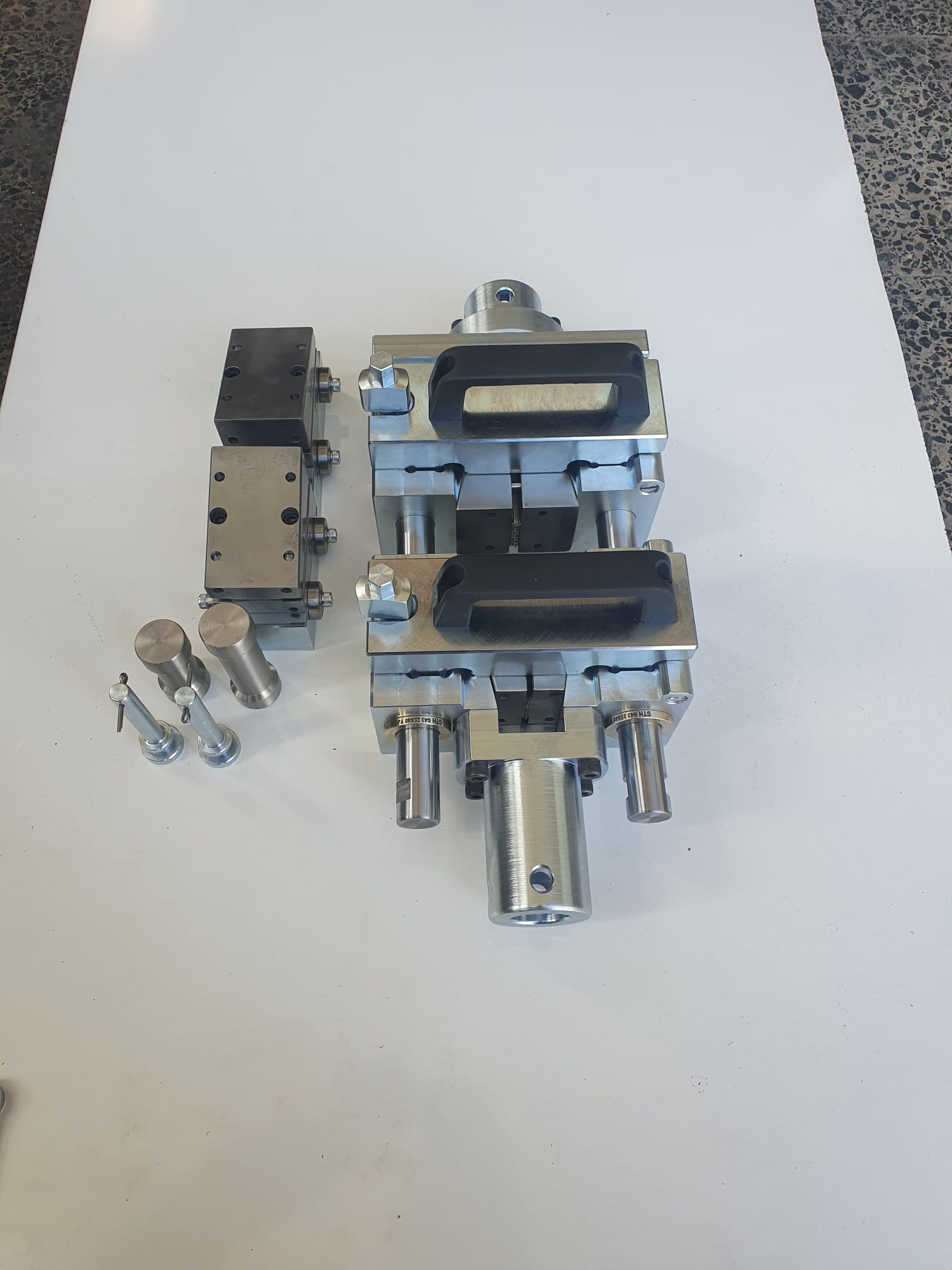

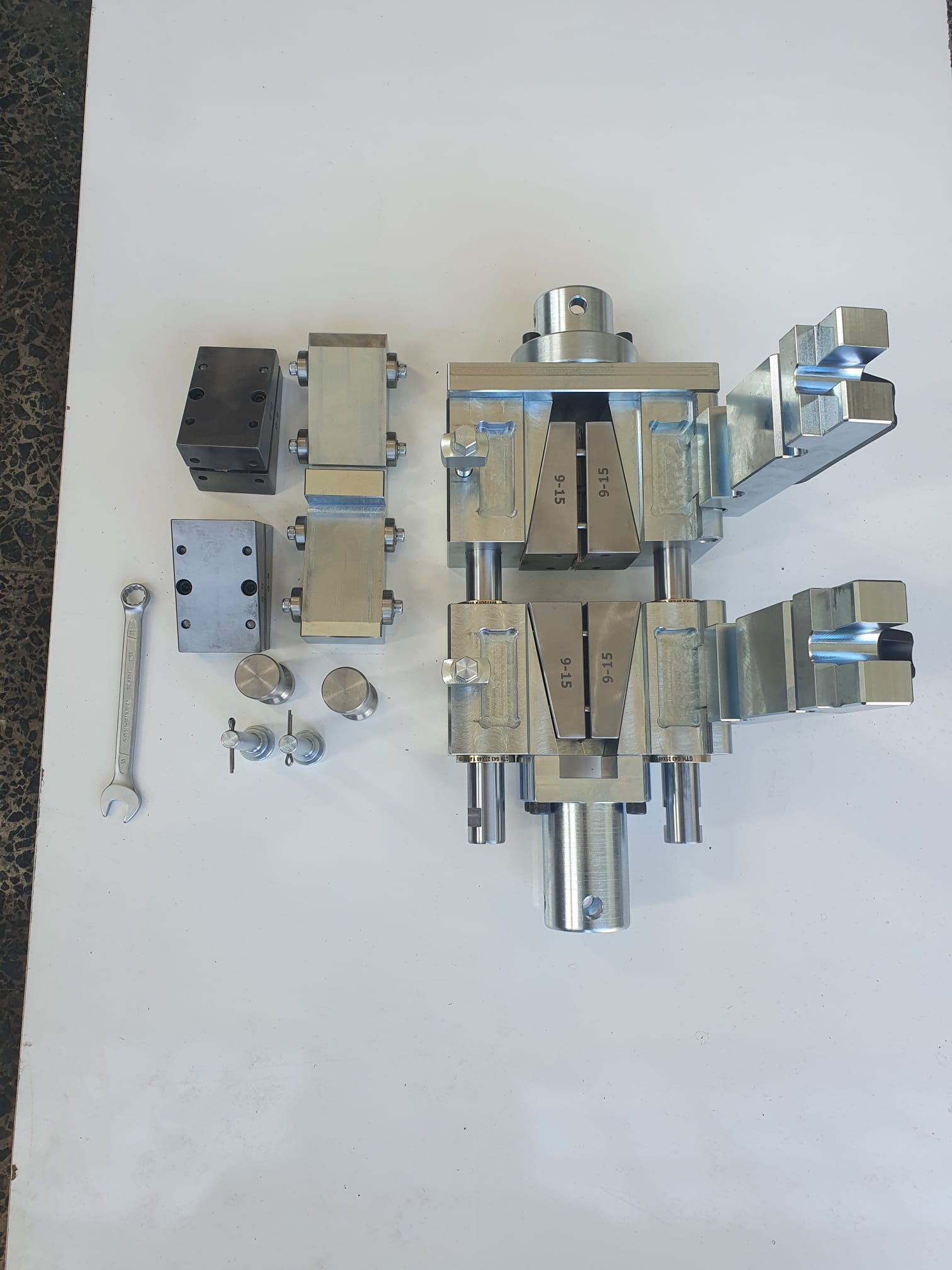

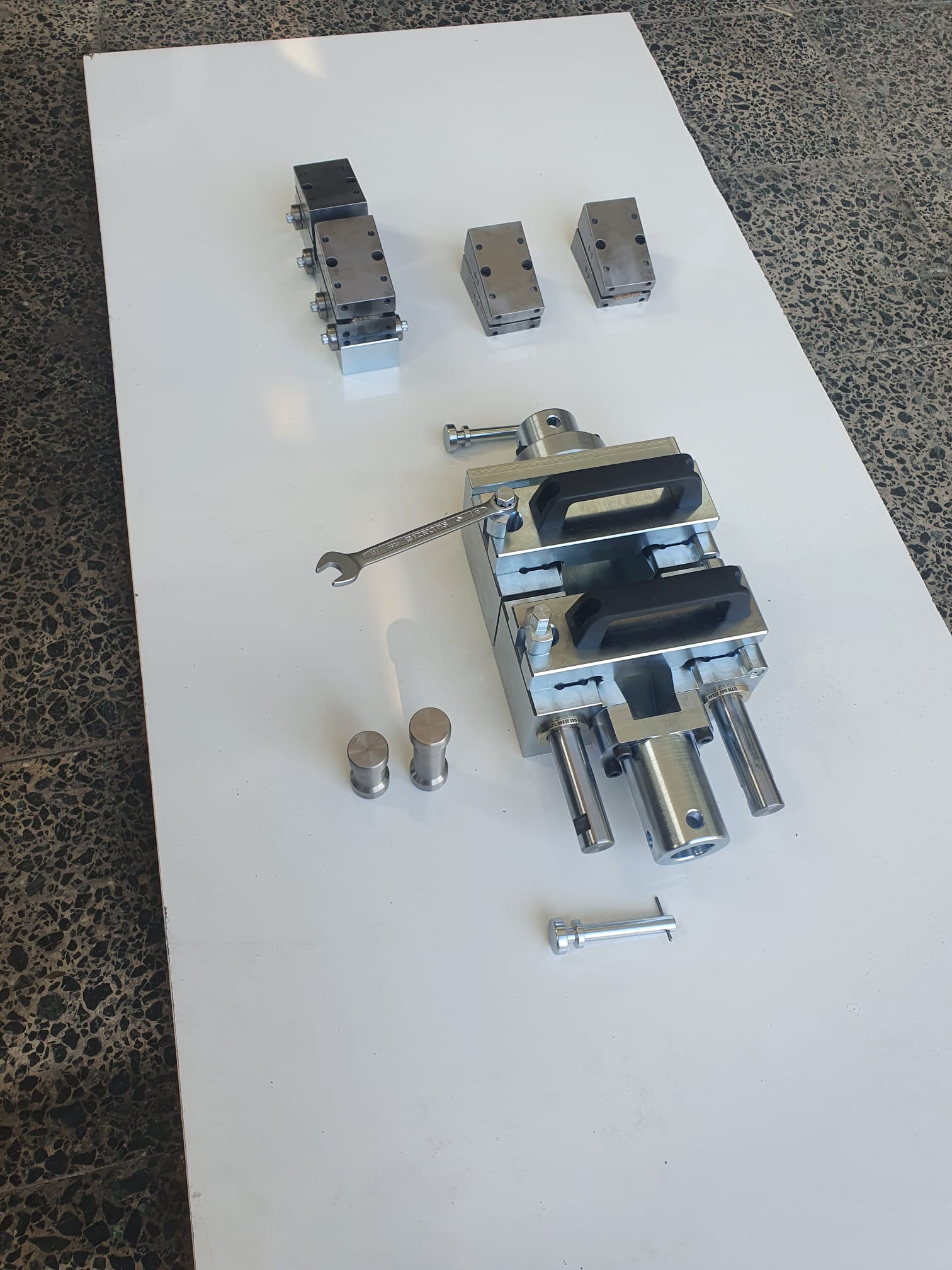

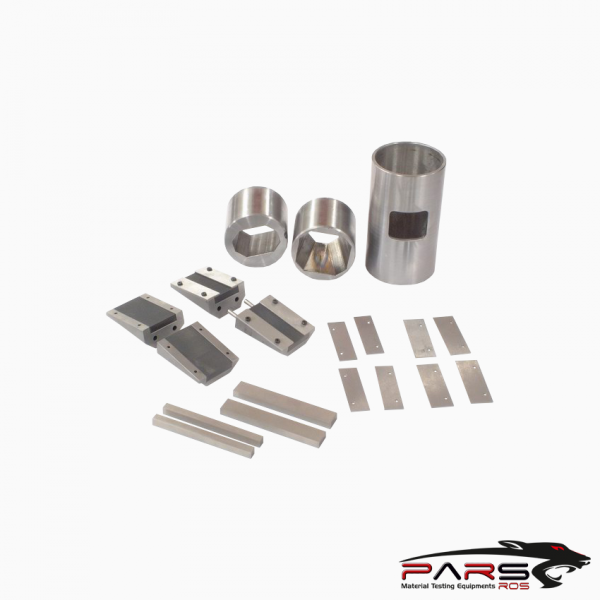

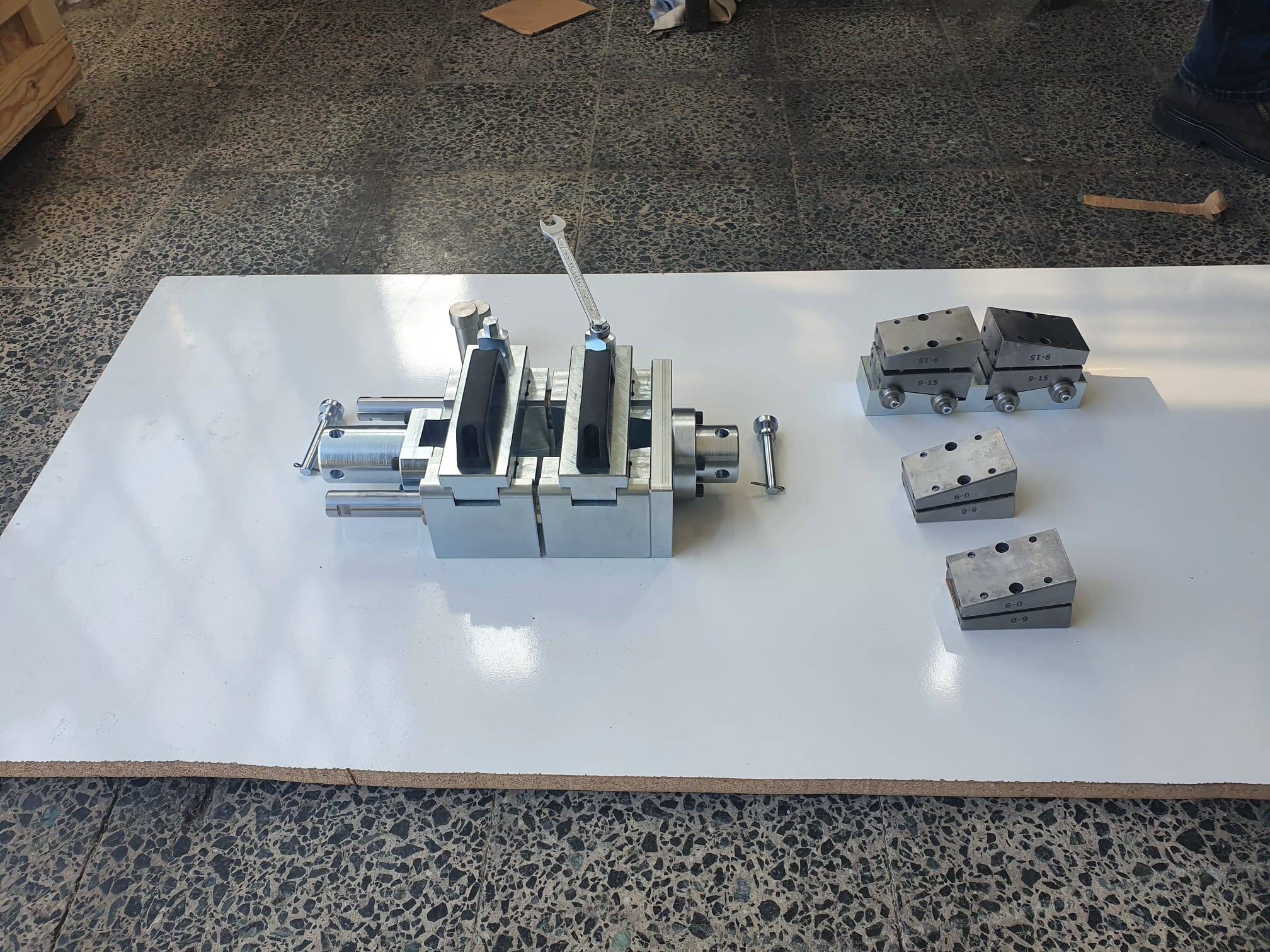

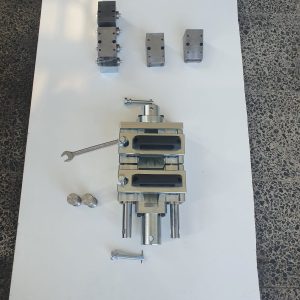

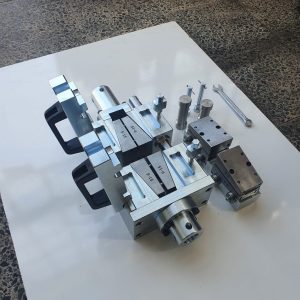

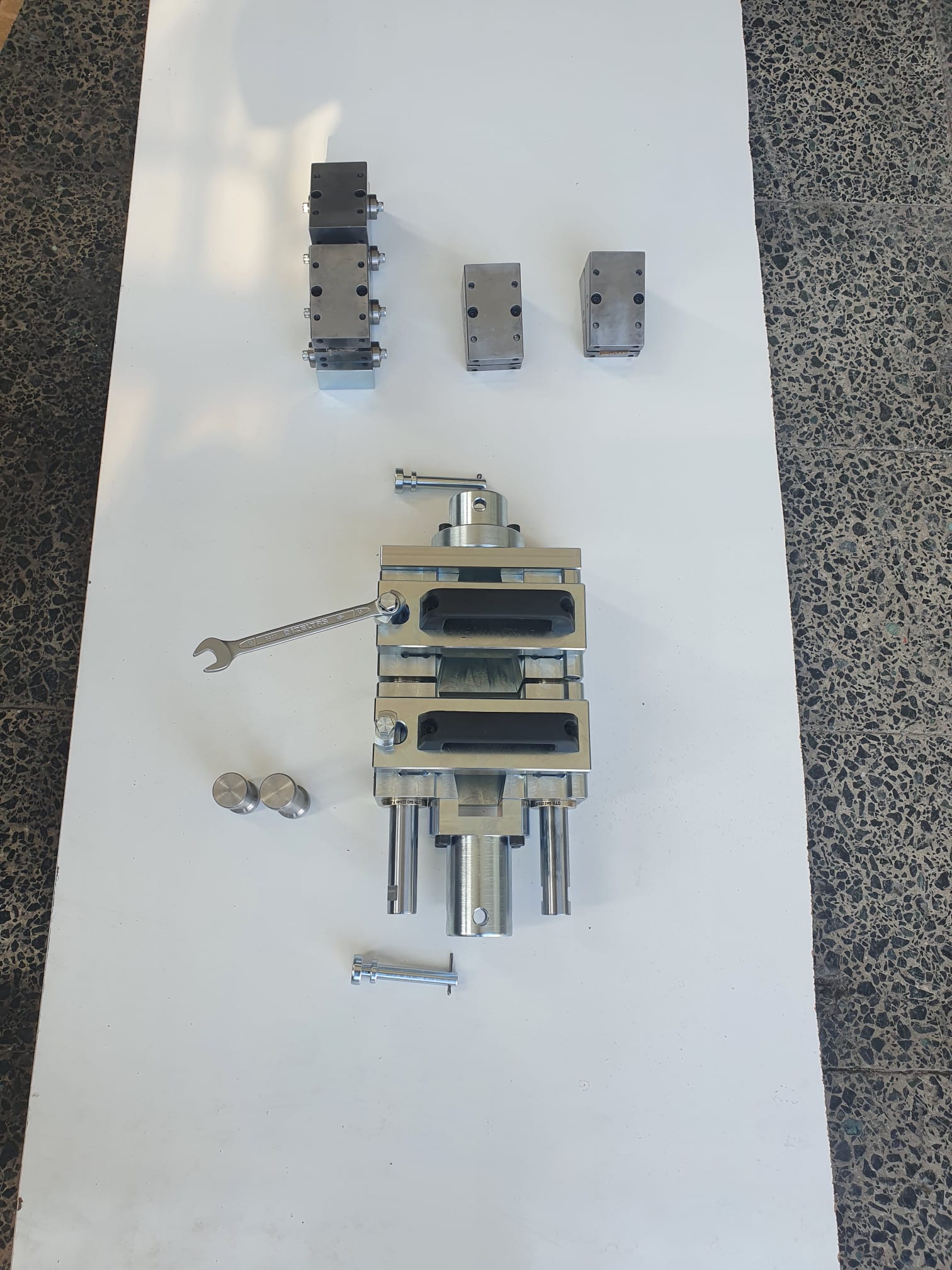

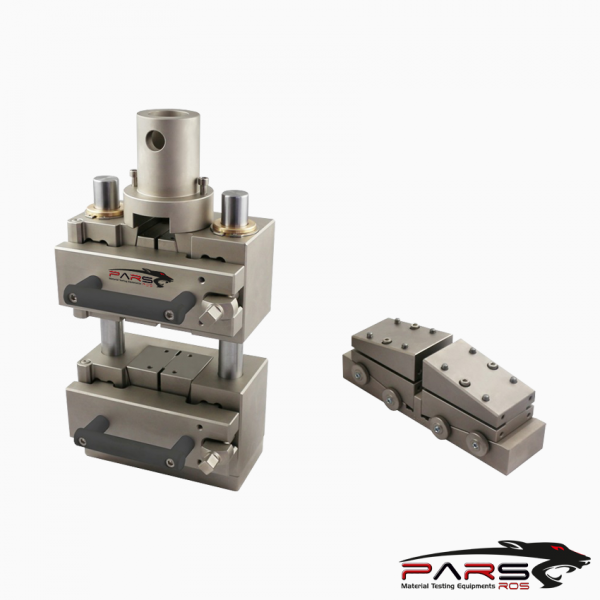

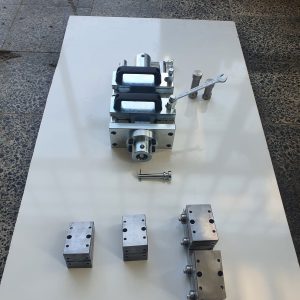

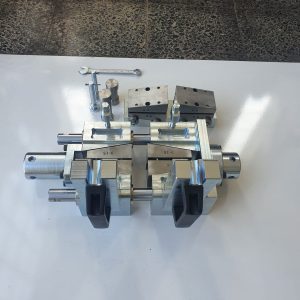

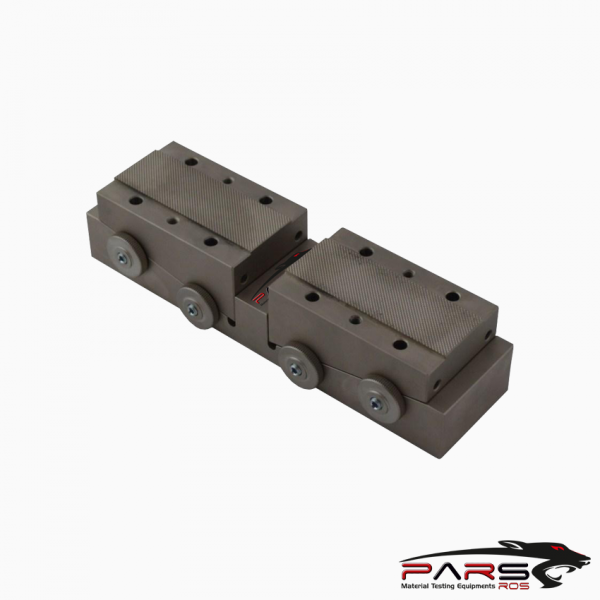

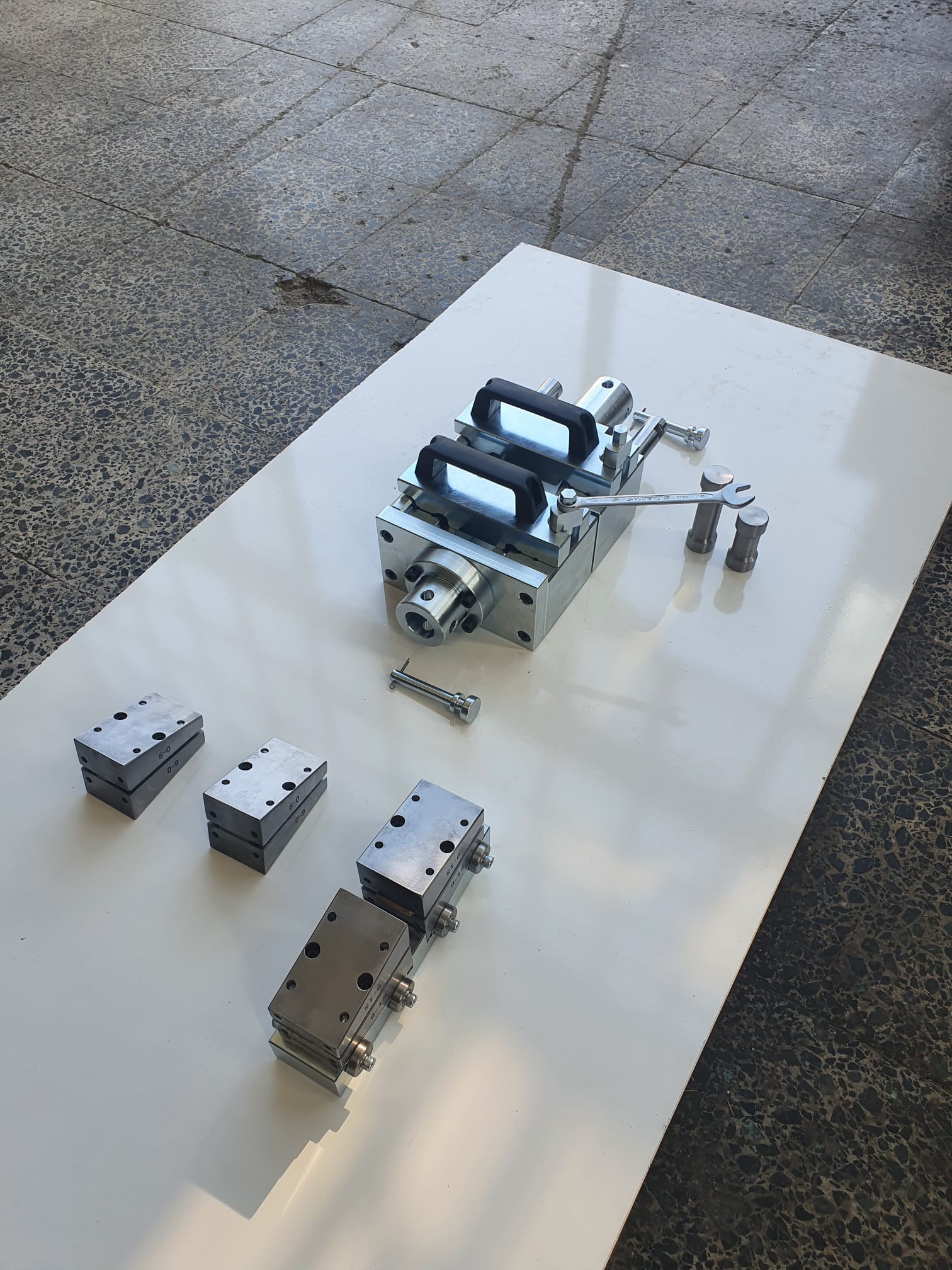

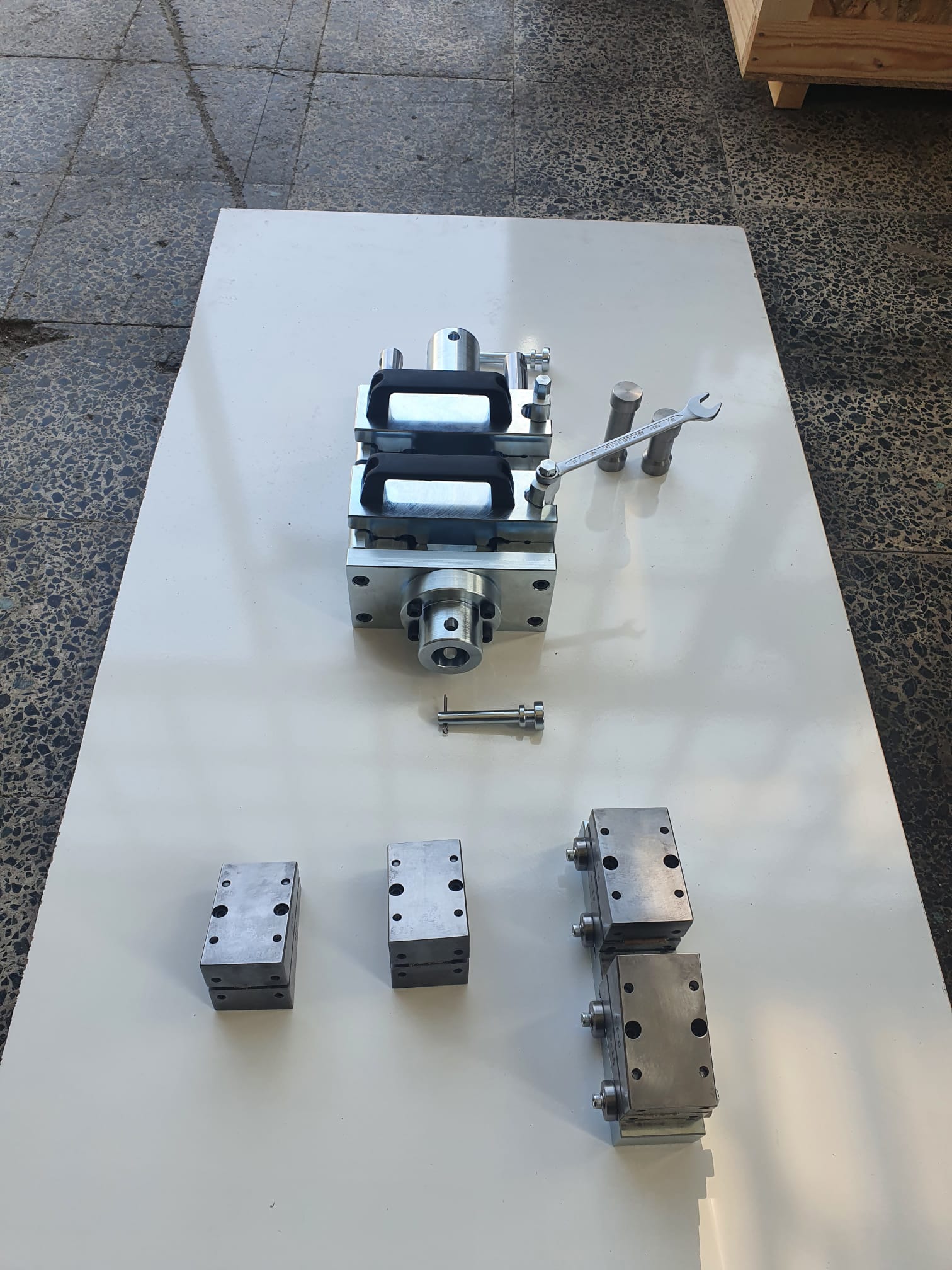

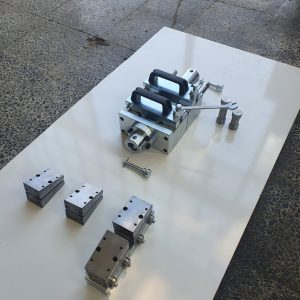

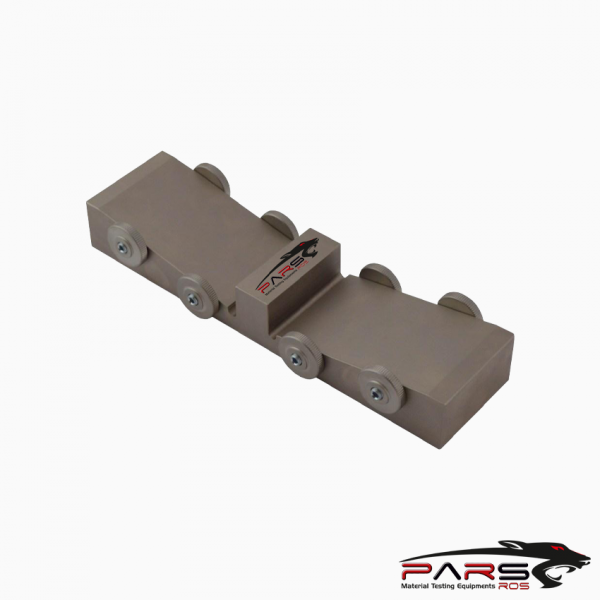

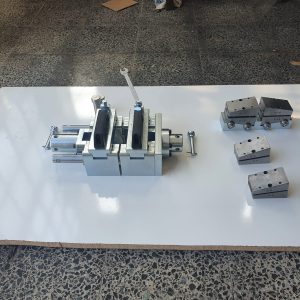

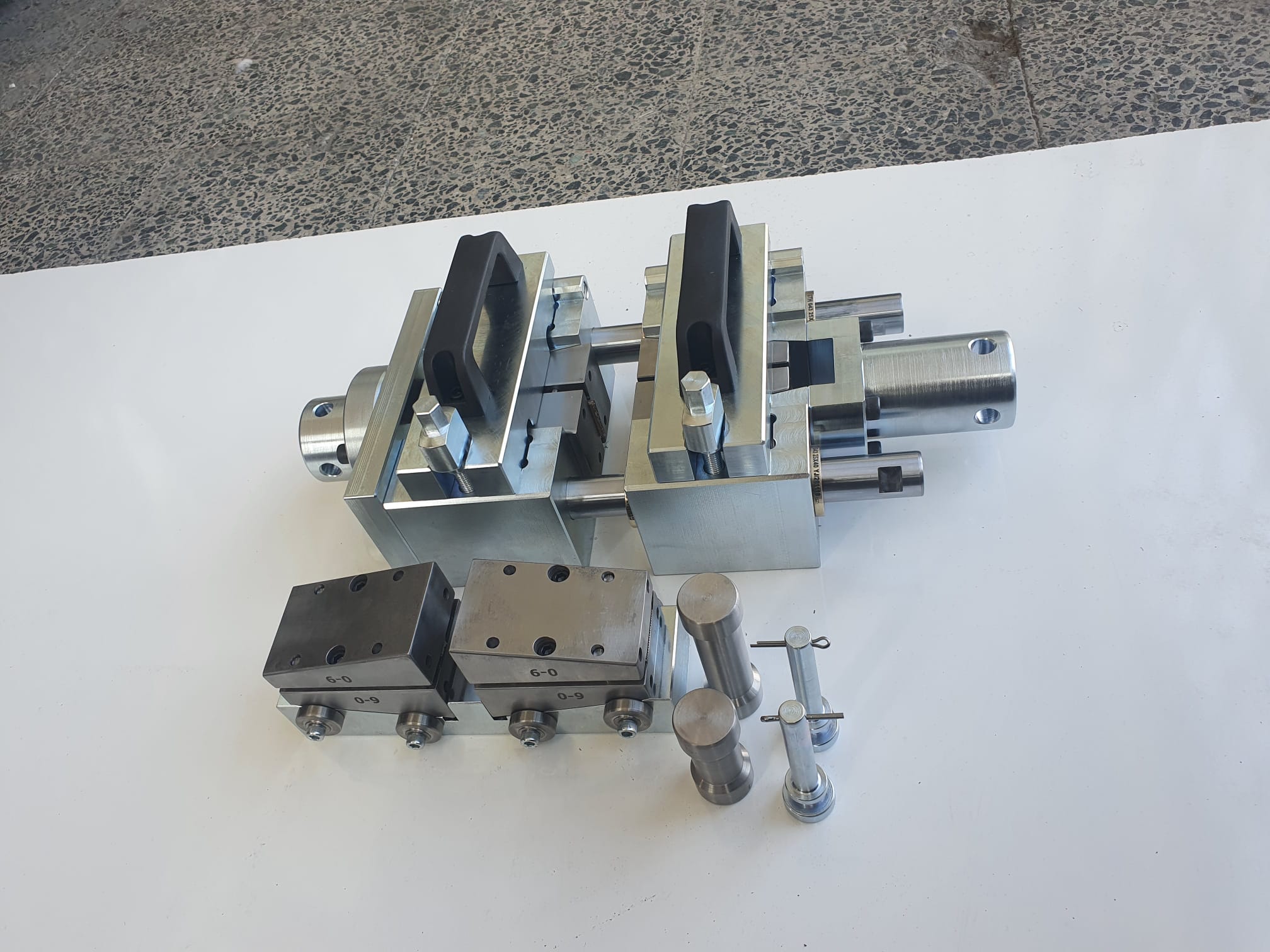

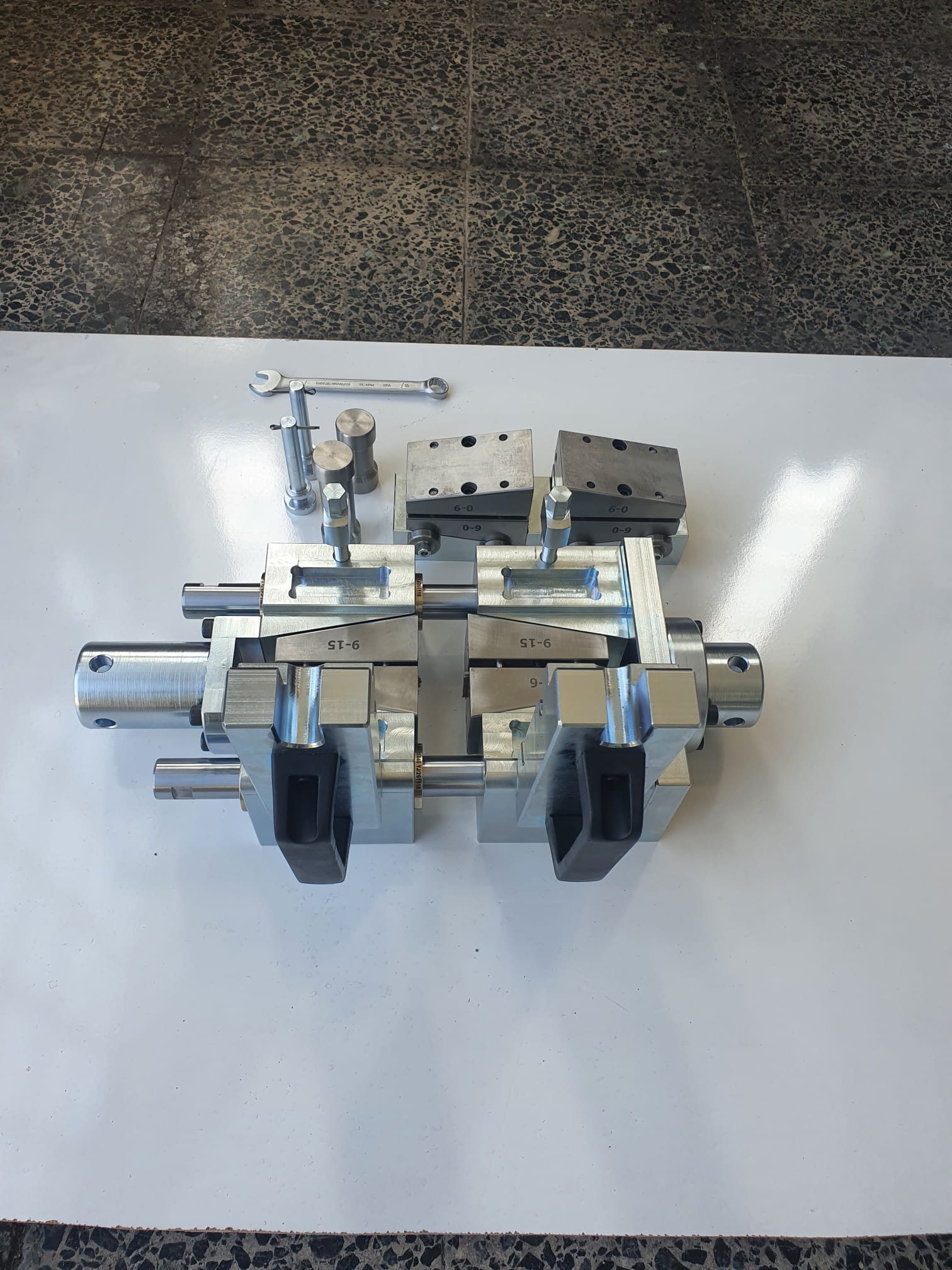

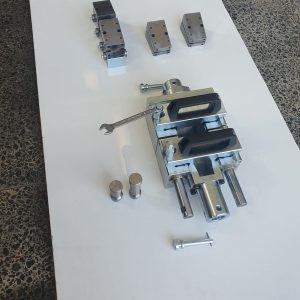

The test utilizes a standard universal testing machine and a specially-designed fixture with wedge grip interfaces as described in the specification.

A universal testing machine with two loading rates, with at least one moveable along the testing axis is needed to complete the test procedure.

The specially-designed fixture should be attached to the upper cross head and a flat platen that is at least 20 mm (0.75 in) should be attached to the lower crosshead.

*** Before conducting ASTM D3410, it is important to read the entire specification in the relevant ASTM publication.



***PARSROS  offers several types of grips and fixtures which will enable you to perform a variety of tests

that are accurate and repeatable.

Please contact with our engineers so that we can find and offer  Best Universal Tensile Test Machines , Grips , Jaws and Other Accessories for your operations
