Automatic Flexural Testing Machines

Product Code	Product Description
PRS-CM6320	Automatic Flexural Testing Machine, 200 kN 220-240 V 50-60 Hz
PRS-CM6321	Automatic Flexural Testing Machine, 300 kN 220-240 V 50-60 Hz
PRS-CM6322	Automatic Flexural Testing Machine, 600 kN 220-240 V 50-60 Hz

STANDARDS : TS EN 1338, 1339, 1340, 12390-5, 12390-6; BS 1881; ASTM C78, C293, C496, EN 1338, 1339, 1340, 12390-5, 12390-6; BS 1881; ASTM C78,

C293, C496

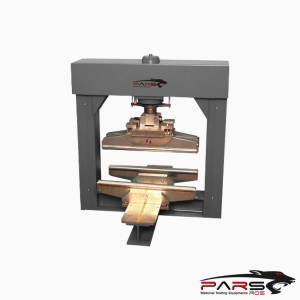

The PARSROS Automatic  Flexural Testing Machines have been designed for reliable and consist­ent testing of flexural test on standard concrete beams, concrete

or natural stone

kerbs, concrete paving flags, and natural stone slabs and tensile splitting test of concrete paving blocks.

Tests can be performed by either on Digital Automatic Control Unit or on a computer with using free PARSROS Software.

The PARSROS Automatic range of 200 kN, 300 kN and 600 kN capacity flexural testing machines allow inexperienced to perform the test.

Once the machine is switched on and specimen is placed, then the only required operations are;

Setting test parameters, including pace rate only required when the specimen type is changed.

Pressing the START button on the control unit.

The machine automatically starts the rapid approach; switches the test speed after 1% of the load capacity of the machine and stops once the specimen failure.

Automatically saves the test parameters and test results.

The PARSROS range of Flexural Machines have the accuracy of Class 1 start­ing from 2% of the full capacity.

The Machines consist of a rigid welded steel frame and hydraulic power pack with Digital Control Unit.

PARSROS  Flexural Testing Machines are designed to allow easy and practical front loading of the specimens.

---

The test assemblies such as;

Flexture strenght test of concrete beam , kerb and flagstone

Indirect tensile strengt test of paving block

Splitting tensile strengt test of concrete cubes and cylinders

*** Compression strengt test of any condtruction material  and distance pieces   should be ordered separately

---

The main characteristics of  Flexural Testing Machines are:

Closed loop control with automatic test procedure

Supplied with factory calibration certificate for load measurement

Can perform the test with load control

Tests automatically with closed loop control

The tests can be performed by controlling the machine either on Digital control unit  or on a computer with using free PARSROS  Software  which is provided free of

charge with the machines.

Load measurment with a loadcell

Welded steel frame

Digital  Control Unit

---

PARSROS Digital  Control Unit  is designed to perform automatically compression, flexure and splitting tensile strength tests of construction materials such as

concrete, cement mortar, masonary units/blocks by controlling the ParsRos automatic compression / flexure testing machines.

PARSROS Digital  Control Unit has easy to use menu options.

It displays all menu option listings simultaneously, allowing the operator to access the required option in a seemless manner to activate the option or enter a numeric

value to set the test parameters.

Digital graphic display is able to draw real-time “Load vs. Time”, or “Stress vs. Time” graphics

---

Optional Additional Frame

For compression and especially flexural testing, additionally second testing frame should be ordered separately.

In this case, the machines provide load control of two seperate testing frames with closed-loop P.I.D control with automatic test procedure by using selecting test

channel and additional selector valve.

---

Safety Features

Maximum pressure valves to avoid machine overloading

Piston travel limit switch

Emergency stop button

Software controlled maximum load value
