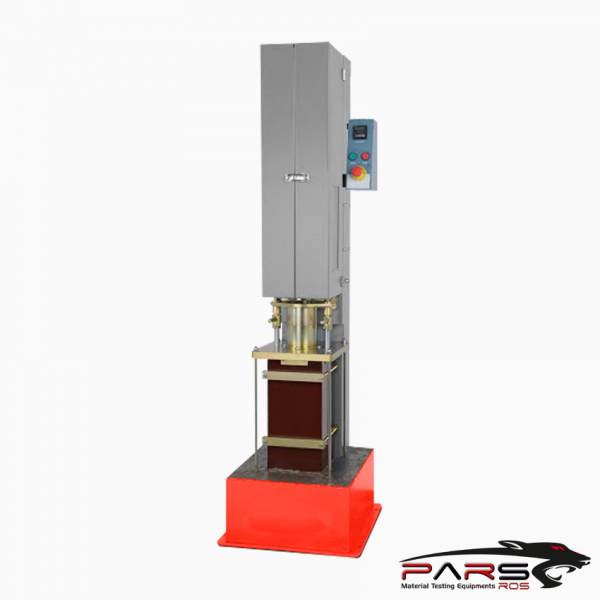

Automatic Marshall Impact Compactor , ASTM

Description

Product Code	Product Description
PRS-ASFAMC44/A	Automatic Marshall Compactor, for 4” dia. Specimens, ASTM, 220-240 V 50 Hz (60 Hz version is available upon request)
PRS-ASFAMC44/A-S	Automatic Marshall Compactor, for 4” dia. Specimens with Soundproof Safety Cabinet, ASTM, 220-240 V 50 Hz
PRS-ASFAMC46/A	Automatic Marshall Compactor, for 6” dia. Specimens,ASTM,220-240 V 50 Hz (60 Hz version is available upon request)
PRS-ASFAMC46/A-S	Automatic Marshall Compactor, for 6” dia. Specimens with Soundproof Safety Cabinet, ASTM,220-240 V 50 Hz (60 Hz version is available upon request)
PRS-ASPMSB57	Marshall Steel Block, Ø 102 and 50 mm height
PRS-ASPMSB58	Marshall Steel Block, 152,4 mm dia. x 50,8 mm height



Automatic Marshall Impact Compactor , ASTM

STANDARDS : ASTM D 1559, D 6926, D 5581; AASHTO T245

Automatic Marshall Impact Compactors are designed to provide a stable and rigid mechanism is used for preraration of bituminous specimens for Marshall

Stability tests.

Both models feature a heavy-duty design, which stands up well to the constant jarring caused by the compaction process.

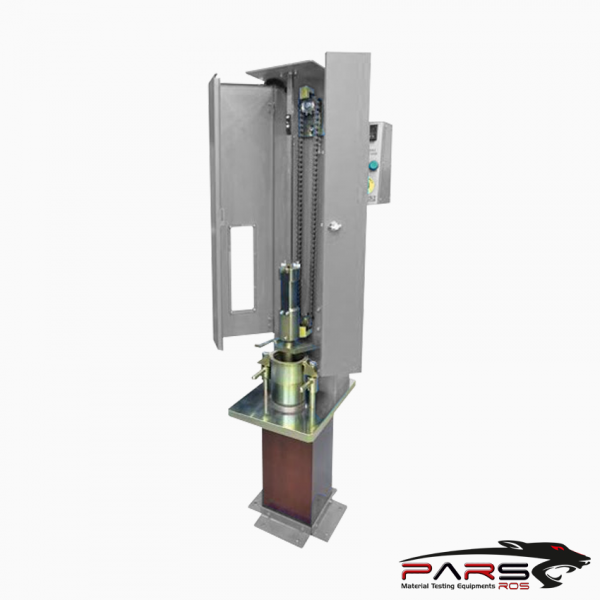

The Compactors are equipped with a mould fixing mechanism which also raises the hammer to provide easy removing of the mould. With this feature, the

user can easily release the mould and raise the rammer simultaneously.

The conveniently positioned control panel comprises of start/stop button, emergency stop button and a direct reading counter used to set the required number of

blows. the operator can keep track of the number of blows on an LCD display. The apparatus stops automatically

after the preset number of blows.

*** Marshall Compaction  moulds have to be ordered separately

Product Code	PRS-ASFAMC44/A	PRS-ASFAMC46/A
Dimension	550x550x1950 mm	550x550x1950 mm
Weight (approx.)	135 kg	145 kg
