Bohme Abrasion Testing Machine
STANDARDS : EN 1338, 1339, 1340
Bohme Testing Machine is used for determining the abrasion resistance of concrete and natural stone products used for internal or external paving.
Please Contact With Us For More Information
- Description
- TECHNICAL SPECIFICATIONS
Description
| Product Code | Product Description |
| PRS-ABA0615 | Bohme Abrasion Testing Machine ,220-240 V 50 Hz (60 Hz version is available upon request) |
| PRS- ABA0616 | Abrasive Sand, 50 kg pack |

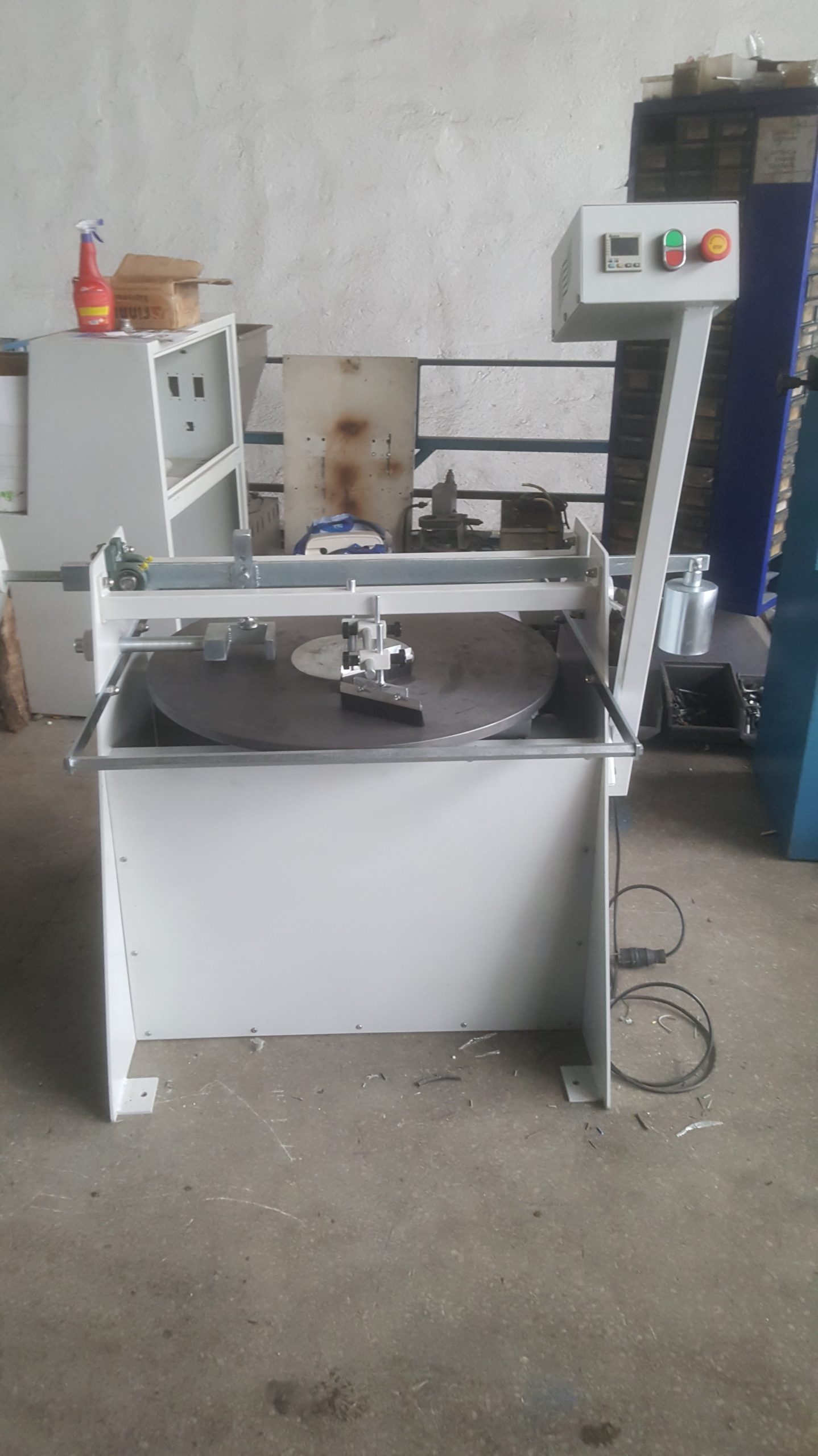

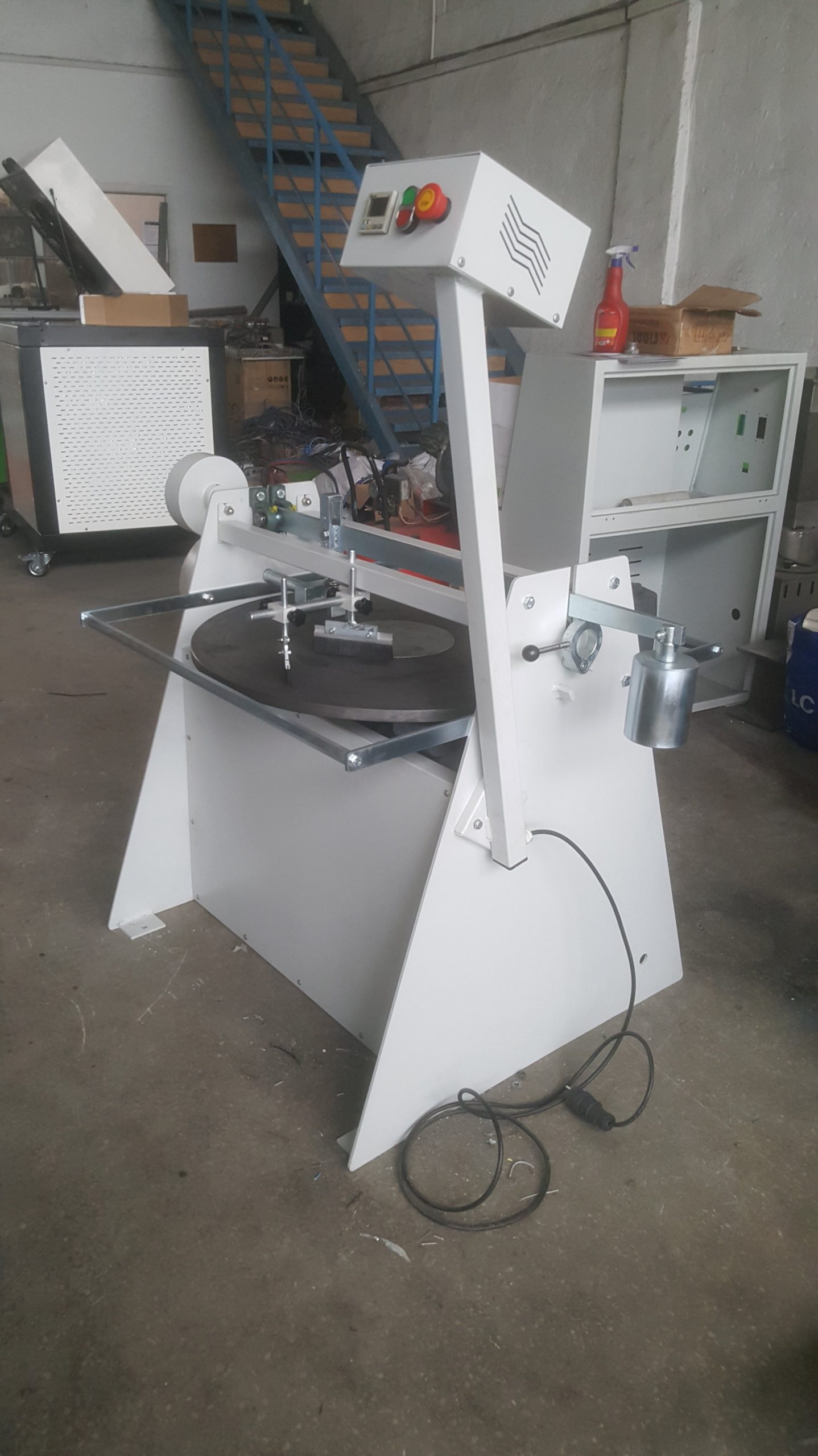

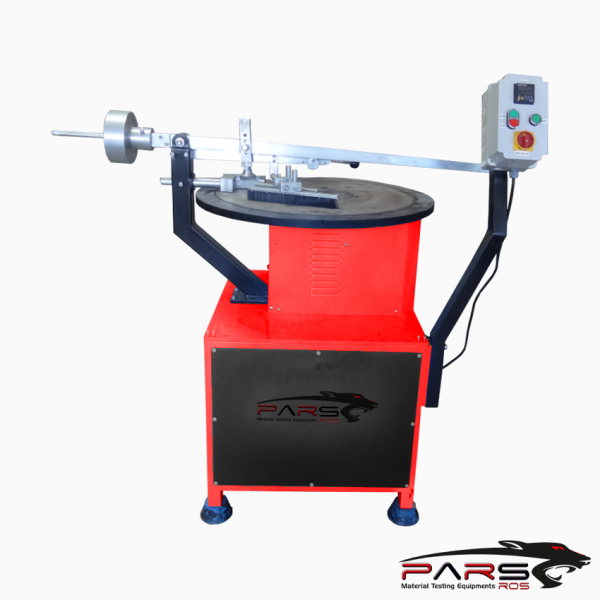

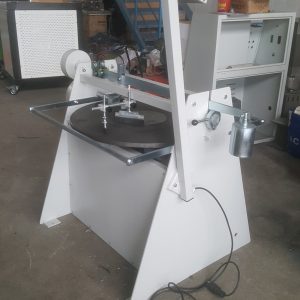

Bohme Abrasion Testing Machine
STANDARDS : EN 1338, 1339, 1340
Bohme Abrasion Testing Machine is used for determining the abrasion resistance of concrete and natural stone products used for internal or external paving.
The machine consists of a grinding wheel of approx. 750 mm diameter, a removable testing weight of 30 kg and a clamping device for the sample.
The machine is equipped with an adjustable counter (30 ± 1 r.p.m.) and an automatic cut-off system which stops the machine after 22 rotations.
*** Abrasive Sand should be ordered separately.
| Dimensions | 1500x6850x1350 mm |
| Weigh (approx.) | 300 kg |
| Power | 750 W |
