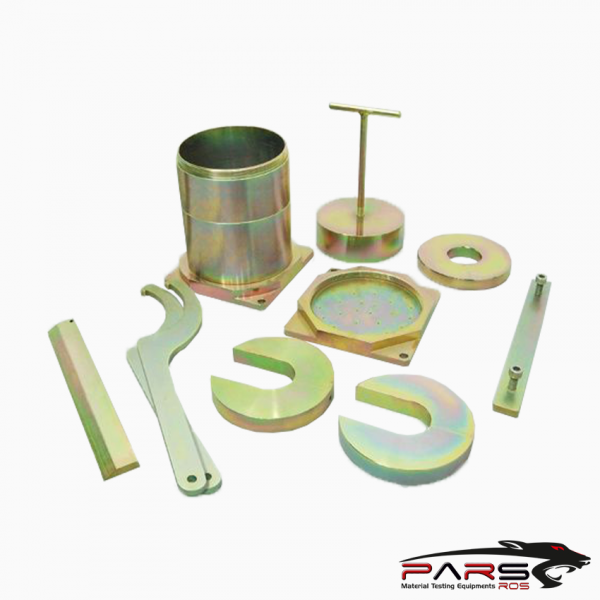

CBR Moulds & Accessories,BS
STANDARDS : BS 1377:4, 1924:2
Cbr Moulds & Accessories are used for the laboratories of road subfloor and sub-base course materials.
Please Contact With Us For More Information
- Description
- Reviews (0)
- TECHNICAL SPECIFICATIONS
Description
| Product Code | Description |
| PRS-SCBM 0750/ BS (*) | CBR Type Mould BS (modified proctor) / Vibrating Hammer Mould EN, internal dia.: 152 mm, internal height: 127mm, supplied complete with extension collar and solid base plate |
| PRS-SCBM0755 /BS | Compaction plug with T handle BS, 150 mm dia. x 50 mm height |
| PRS-SCBM 0758 / BS | Annular Surcharge Weight BS/EN, 2 kg |
| PRS-SCBM 0760 / BS | Split Surcharge Weight BS/EN, 2 kg |
| PRS-SCBM 0762/ BS | CBR Perforated Base Plate BS |
| PRS-SCBM 0764 / BS | Filter Paper for CBR Test No:1 x 150 mm dia. BS (Pack of 100) |
| PRS-SCBM 0768 / BS | C- Spanner |
| PRS-SCBM 0770 / BS | Assembly tool for Base Plate |
CBR Moulds & Accessories,BS
STANDARDS : BS 1377:4, 1924:2
Cbr Moulds & Accessories are used for the laboratories of road subfloor and sub-base course materials.
They are generally manufactured by our company according to ASTM, BS, AS, EN, NF Standards.
Be the first to review “CBR Moulds & Accessories,BS”
You must be logged in to post a review.
Each accessories listed below should be ordered separately.
| Product Code | Dimensions | Weight (approx.) |
| PRS-SCBM 0750/ BS (*) | 200x200x450 mm | 8.5 kg |
| PRS-SCBM0755 /BS | 200x200x300 mm | 7.5 kg |
| PRS-SCBM 0758 / BS | 200x200x100 mm | 2.6 kg |
| PRS-SCBM 0760 / BS | 200x200x100 mm | 2.6 kg |
| PRS-SCBM 0762/ BS | 200x200x100 mm | 2 kg |
| PRS-SCBM 0764 / BS | 200x200x20 mm | 0.1 kg |
| PRS-SCBM 0768 / BS | 200x300x100 mm | 1 kg |
| PRS-SCBM 0770 / BS | 350x30x15 mm | 1 kg |
