Concrete Flow Table Test Set

Concrete Flow Table Test Set

STANDARDS : EN 12350-5

Test Set is used for concrete mixes of high workability and determines flow index as an arithmetic mean of the diameter of the specimen

after working on a flow table.

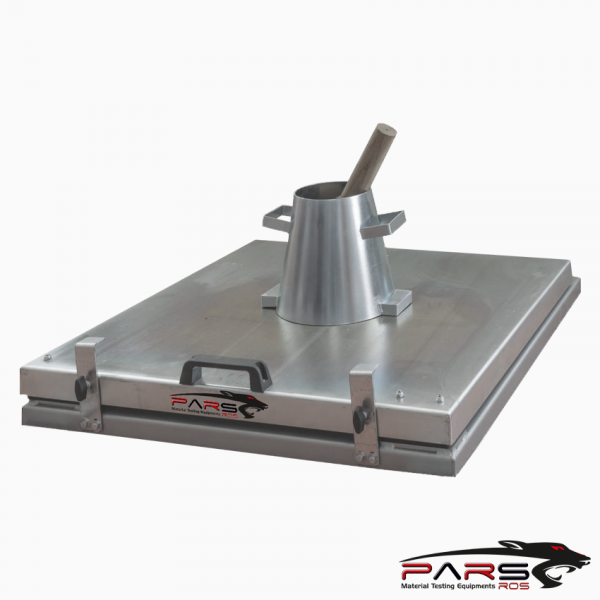

The apparatus consists of a double steel table, an upper table measuring 700×700 mm and hinged at one side to the lower table.

The top table is inscribed and all parts are protected against corrosion.

The stainless steel cone has a 130 ±2 mm top diameter, 200 ±2 mm base diameter and 200 ±2 mm height and 1.5 mm thickness.

*** It is supplied complete with;

Flow Cone

Wooden Tamper
