Constant Head Permeability Set

Awaiting product image Automatic Direct Shear Test Machine
0 out of 5
( There are no reviews yet. )

STANDARDS : BS 1377:5

Constant Head Permeability Sets are used to study the behaviour of soil, relatively coarse-grained soil such as sands and gravel, in its natural conditions

with respect to water flow.

Please Contact With Us For More Information

Category: Tag:

Description

Product Code Product Description
PRS-SCHPER60 Constant Head Permeability Set for Ø 80 mm cell
PRS-SCHPER61 Constant Head Permeability Set for Ø 120 mm cell
PRS-SCHPER62 Constant Head Permeability Cell, 80 mm dia.
PRS-SCHPER63 Constant Head Permeability Cell, 120 mm dia.
PRS-SCHPER65 Wooden Stand with 3 Manometer Tubes
PRS-SCHPER68 Constant Level Water Tank, 7 L.
PRS- ATR8300 Tamping Rod Ø 8×300 mm

Constant Head Permeability Set

STANDARDS : BS 1377:5

Constant Head Permeability Sets are used to study the behaviour of soil, relatively coarse-grained soil such as sands and gravel, in its natural conditions

with respect to water flow.

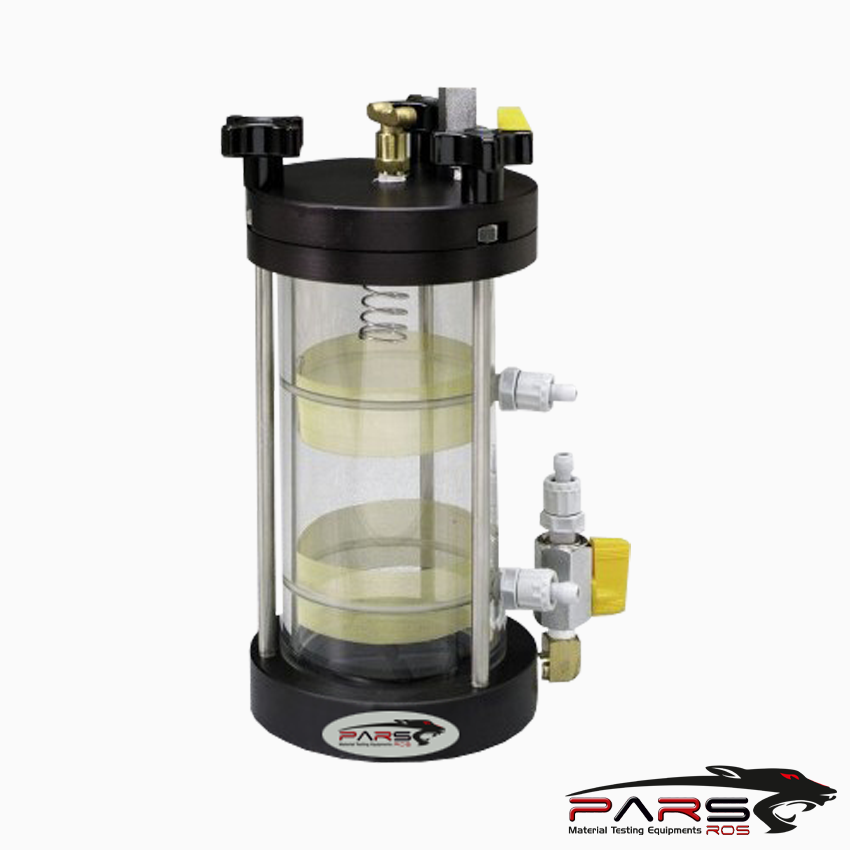

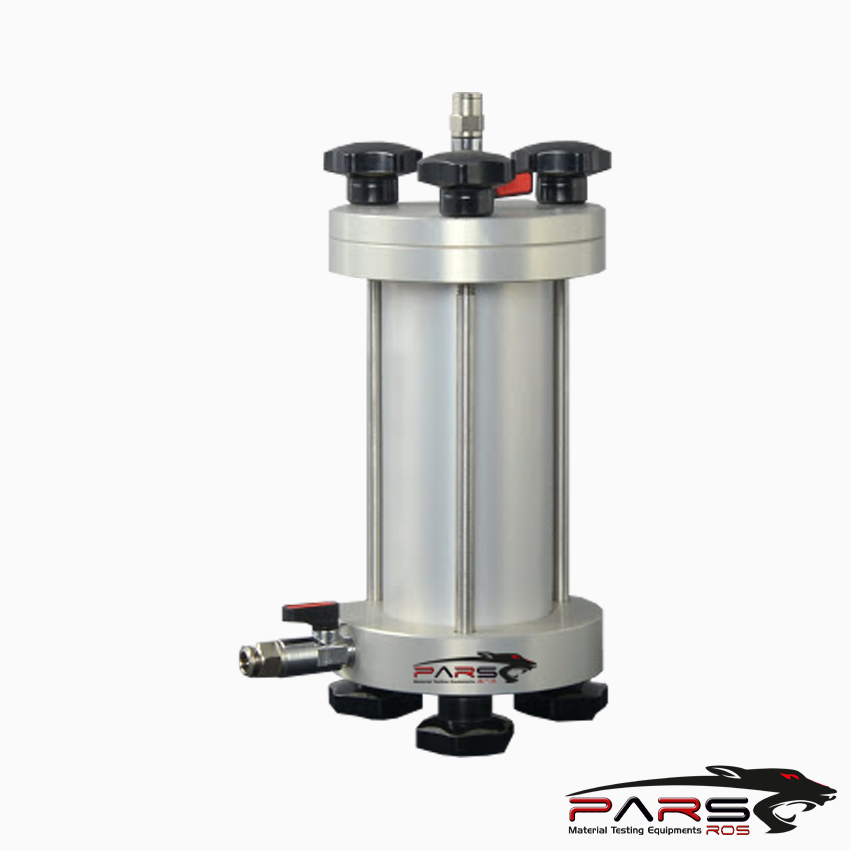

Two models are available according to cell dimensions. The cells have an acryilic glass body with 3 pressure points at different level.

PRS-SCHPER65 stand is fitted with 3 glass manometer tubes each being 1000 mm long.

PRS-SCHPER68 Constant Level Tank 7 L, made of transparent plastic, is used to provide constant water level in the manometer tubes.

Optional Equipment For De-Airing Water  and Tamping Rod should be ordered separately

The Constant Head Permeability Set is supplied complete with;

Ø 80 mm or Ø 120 mm Permeability Cell with Pressure Points at 3 different levels and 2 pcs.  Wire Gauze ( fit for the prefered cell dia. )

Wooden Stand with 3 manometer tubes

3 m Hose

Reviews

There are no reviews yet.

Be the first to review “Constant Head Permeability Set”

Product Code Dimensions Weight (approx.)
PRS-SCHPER62 140x220x420 mm 3.5 kg
PRS-SCHPER63 180x250x640 mm 7 kg
PRS-SCHPER65 220x70x1700 mm 5.6 kg
PRS-SCHPER68 300x200x250 mm 3 kg
PRS- ATR8300 Ø 8×300 mm 0.5 kg
