Duriez Compression Test Set

Description

Duriez Compression Test Set

STANDARDS :  NF P98-251-1/4; TS EN 12697-12 Method A and B

Duriez Compression  Test Sets are used to determine the physical and mechanical properties of bituminous mixtures, especially for the water sensitivity of

bituminous specimens.

One set for preparing 80 mm. specimens, the second set for preparing 80 mm. specimens according to the maximum aggregate upper sieve size.

*** All parts are made from steel protected against corrosion.

The compression test has to be performed with an electromechanical universal test machine

According to EN 12697-12 ( Medhod A and B), test specimens can also be compacted by using impact compaction or vibratory compaction.

Automatic Marshall Compactor  for impact compaction acc.to EN 12697-30, Vibratory Compactor Set  for vibratory compaction acc. to EN 12697-32. can be used.

Upper and lower grooved pistons are used for cold mixes with bituminous emulsions.

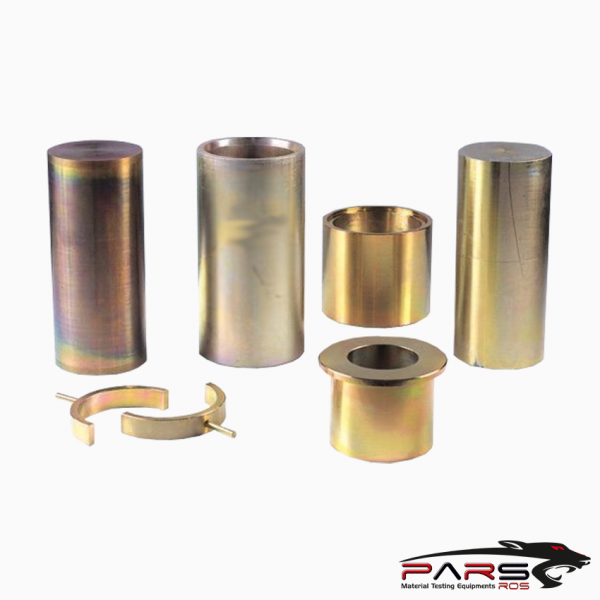

*** Duriez  Set is supplied complete with;

Mould

Container

Piston

Upper and lower pistons

Upper and lower grooved pistons

2 pcs Half spacers
