Hydrometer Test Set
STANDARDS : ASTM D422; AASHTO T88
Hydrometer Test Set is used to determine the particle size distribution of very fine materials such as silt and clay.
Please Contact With Us For More Information
- Description
- Reviews (0)
- TECHNICAL SPECIFICATIONS
Description
| Product Code | Product Description |
| PRS-SHTS0010 | Hydrometer Test Set |
| PRS-SHTS0012 | Soil Dispersion Mixer, 220-240 V 50-60 Hz |
| PRS-SHTS0013 | Hydrometer Bath, 220-240 V 50-60 Hz |
| PRS-SHTS0014 | Hydrometer 151H |
| PRS-SHTS0015 | Hydrometer 152H |
| PRS-SHTS0016 | Hydrometer Jars, 1000 ml |
| PRS-GC0800 | Sodium Hexametaphosphate, 1kg |
Hydrometer Test Set
STANDARDS : ASTM D422; AASHTO T88
Hydrometer Test Set is used to determine the particle size distribution of very fine materials such as silt and clay.

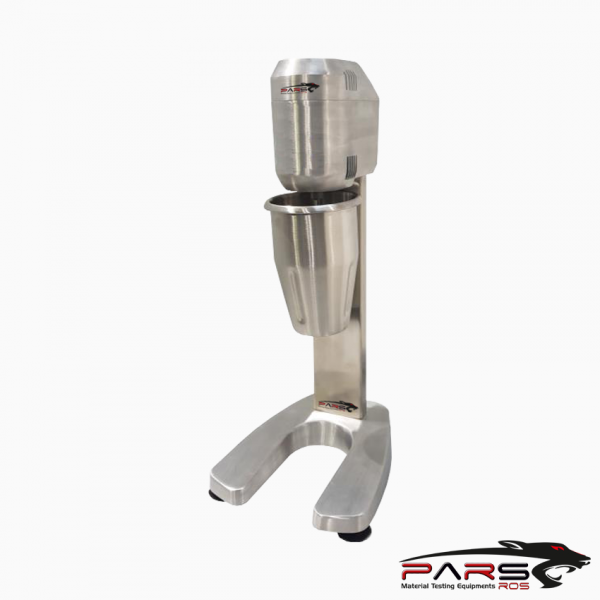

The soil dispersion mixer for hydrometer test method, operates at over 13,000 r.p.m, includes dispersion cup, stirring paddle, automatic switch-on by positioning
bowl, 100 W power consumption

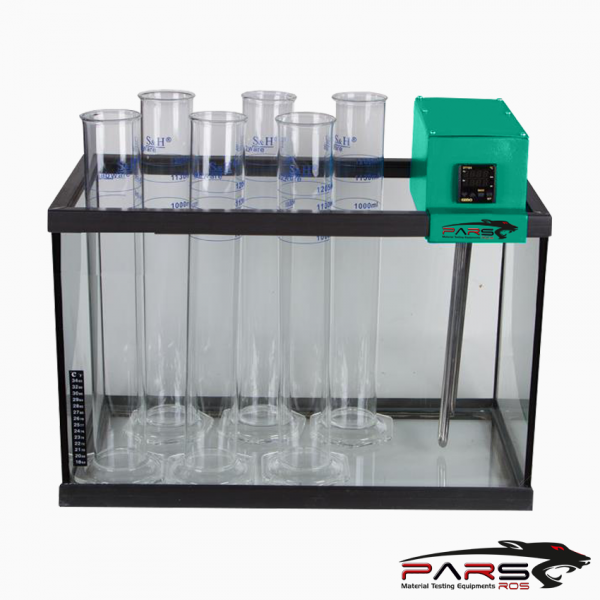

The hydrometer bath, circulation unit, ambient to 35°C working temperature, 50 L capacity tank with 8 pcs. sedimentation cylindercapacity.
*** 152H Hydrometer should be ordered separately.
*** Hydrometer Set is supplied complete with;
Dispersion mixer
Hydrometer bath
Hydrometer, 151H, 1pcs.
Sodium hexametaphosphate 1 kg,
Sedimentation cylinder, 1000 ml, 6 pcs.
Heater,
Circulation unit
Rubber stopper for sedimentation cylinder
Beaker, 600 cc
Be the first to review “Hydrometer Test Set”
You must be logged in to post a review.
| 151 H Hydrometer | 11 “ Length | 0,995-1,038 g/ml | İn 0,001 g/ml division |
| 152H Hydrometer | 11” Lenght | 5 – 60 g/L in 1g/L | İn 1g/L division |
| Dimensions | 330x630x450 mm |
| Weight (approx.) | 20 kg |
