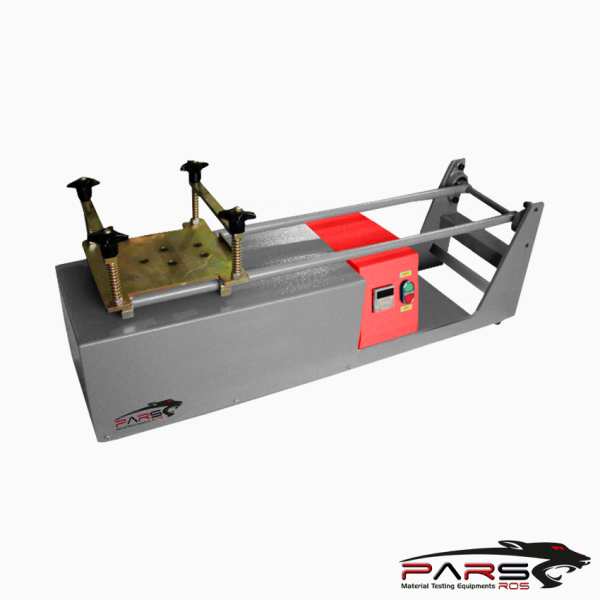

Jolting Table
STANDARDS : EN 196-1; ISO 679
Jolting Table is used for compacting of cement specimens in 40x40x160 mm mould and consists of mould table seated on a rotating cam driven at 60 r.p.m.
Please Contact With Us For More Information
- Description
- Reviews (0)
- TECHNICAL SPECIFICATIONS
Description
| Product Code |
Product Description |
| PRS-CEMJT15 | Jolting Table, EN, 220-240 V 50 Hz, (60 Hz version is available upon request) |
| PRS-CEMJT16 | Jolting Table with Soundproof Safety Cabinet, EN, 220-240 V 50 Hz |
| PRS-CEMJT17 | Three Gang Mould for 40x40x160 mm |
| PRS-CEMJT18 | Feed Hopper 40x40x160 mm |
| PRS-CEMJT19 | Short and Long Spreaders and Straightedge, |
Jolting Table
STANDARDS : EN 196-1; ISO 679
It is used for compacting of cement specimens in 40x40x160 mm mould and consists of mould table seated on a rotating cam driven at 60 r.p.m.
The falling height is 15 mm conforming to EN 196-1.
The machine is equipped with a counter which provides automatic shut off at end of preset drop numbers.
Weight and dimensions of the jolting table fully comply with the requirements of EN 196-1 standard.

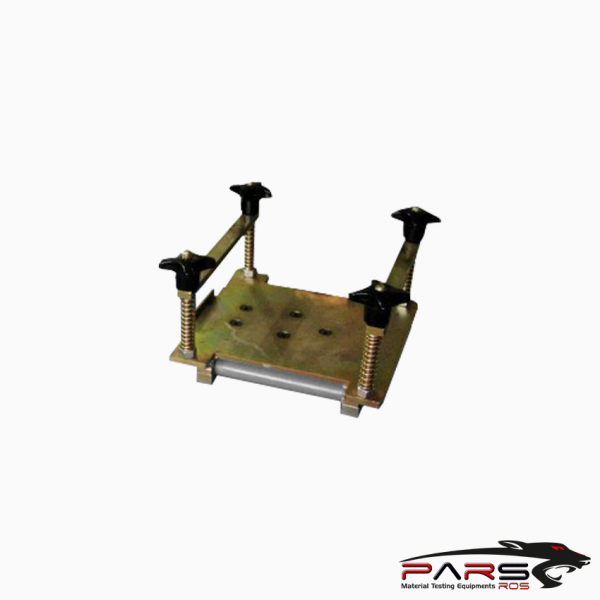

The supporting frame of the machine has been designed to ensure precise dimensions, table flatness, correct centering of the three gang mould on the table.
The motor and gearbox assembly is enclosed in a protective housing, which promotes user safety (the moving parts are inaccessible) and long life for the gearbox.
The standard model can be supplied with a safety/noise reduction cabinet. The cabinet is lined internally with soundproofing material to reduce sound level
conforming to CE directives.
Feed Hopper is used for filling Three Gang Moulds placed on the Jolting Table.
*** Three Gang Mould, Feed Hopper, Short and Long Spreaders and Straightedge should be ordered separately.
Be the first to review “Jolting Table”
You must be logged in to post a review.
| Product Code | PRS-CEMJT15 | PRS-CEMJT16 |
| Dimensions | 1050x350x500 mm | 1440×500×575 mm |
| Weight (approx.) | 55 kg | 125 kg |
| Motor Speed | 60 r.p.m | |
| Drop Height | 15 mm | |
| Power |
250 W |
