Laboratory Ball / Rod Mill

Description

Product Code	Product Description
PRS-CEMBALLMILL	Laboratory Ball / Rod Mill

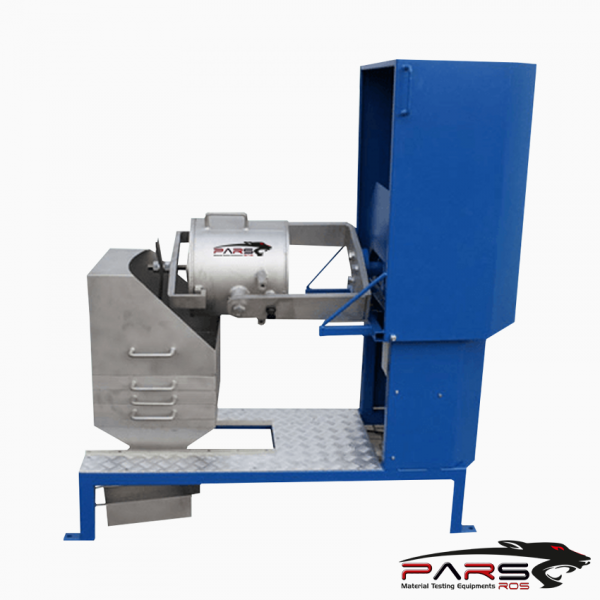

Laboratory Ball / Rod Mill

ParsRos Laboratory Ball / Rod Mill is designed to meet the industrial requirements to grind coal, cement and a wide variety of ores.

The dual duty Laboratory Grinding Mill consists of a gear motor mounted on a high precision solid steel underframe complete with outlet funnel and a set of

separation screens plus sample collector.

---

Method of Operation

The mill incorporates a yoke and locking mechanism to facilitate easy access to the contents of the mill.

An appropriate ball or rod charge is provided with the mill.

The motor incorporates a solid-state controller to accurately control the drum speed of up to 70 RPM.

This controller has an internal overload protection. A revolution counter is included to allow accurate control of milling which will automatically stop the mill when

the desired milling duration is reached.

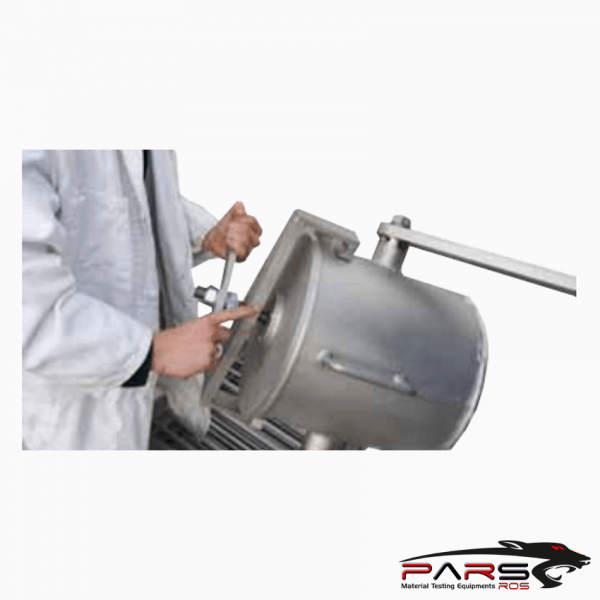

The lid incorporates a quick release locking mechanism.

ParsRos Laboratory Ball Mill for large capacity fine milling up to 21 litre vessel.

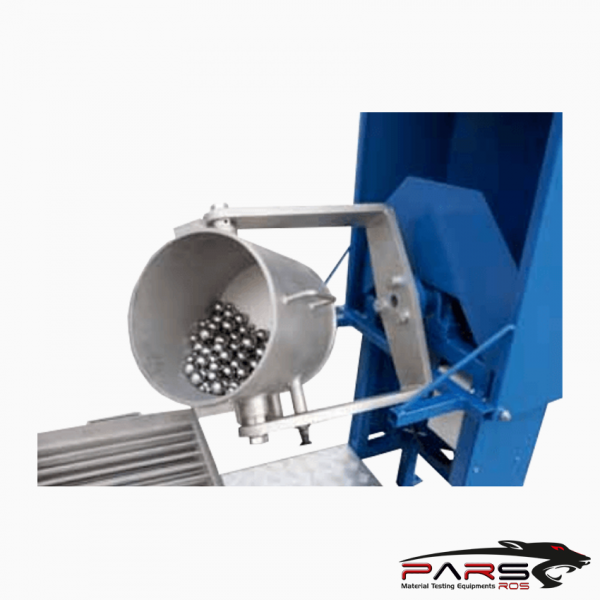

Easy convertible to a Rod Mill Variable speed setting Variable volumes on request Drums, balls and rods available in different materials Easy tilt function to empty

the barrel

---

ParsRos BALL Mill Barrel’s Nominal Volume/Size

200mm Diameter x 200 mm Length 6.3 Liter

250mm Diameter x 250 mm Length 12.3 Liter

300mm Diameter x 300 mm Length 21.0 Liter

---

Features

Variable speed setting

Standard drum sizes from 1 – 20 litres

Ergonomic sample separation set consisting of outlet funnel and screens with handle

Removable sample collector

High precision solid steel underframe, easy to clean

Solid acoustic noise reduction hood with safety switch to stop the motor when hood is opened

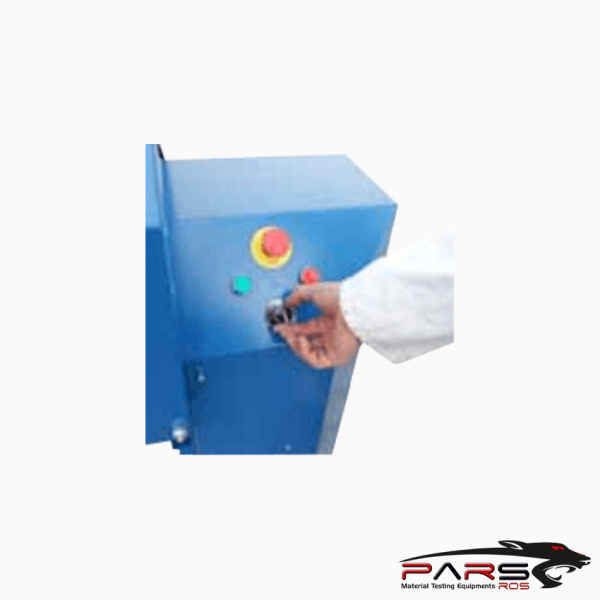

Operation control panel

Emergency stop button
