Liquid Limit Device (Casagrande)
STANDARDS : ASTM D4318; BS 1377:2; AASHTO T89; TS 1900-1
Manual and Motorized Liquid Limit Apparatus (Casagrande) are used to determine the moisture content at which clay soils pass from plastic to liquid state.
Please Contact With Us For More Information
- Description
- Reviews (0)
- TECHNICAL SPECIFICATIONS
Description
| Product Code |
Product Description |
| PRS-SMLLD00 | Manual Liquid Limit Device (Casagrande),BS |
| PRS-SMLLD02 | Manual Liquid Limit Device (Casagrande), ASTM – AASHTO |
| PRS-SMLLD10 | Motorized Liquid Limit Device (Casagrande), BS, 220-240 V 50-60 Hz |
| PRS-SMLLD12 | Motorized Liquid Limit Device (Casagrande),ASTM –AASHTO 220-240 V 50-60 Hz |

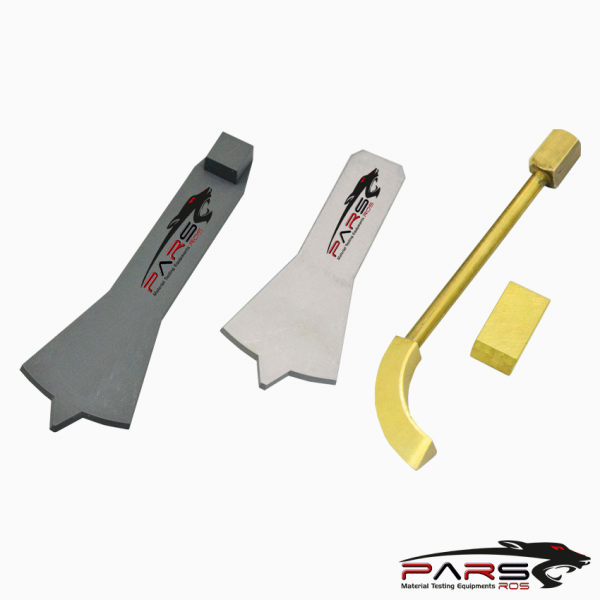

| PRS-SMLLD15 | Metal Grooving Tool and Gauge Block, ASTM |
| PRS-SMLLD16 | Plastic Grooving Tool, ASTM |
| PRS-SMLLD17 | Plastic Grooving Tool, BS |
| PRS-SMLLD18 | Brass Grooving Tool, AASHTO |

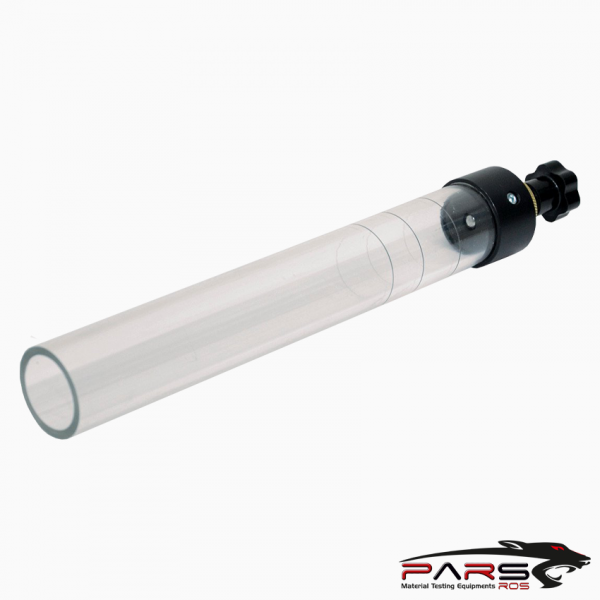

| PRS-SMLLD20 | Resilience (Rebound) Tester, ASTM |
| PRS-SMLLD21 | Resilience (Rebound) Tester, TS 1900-1; AASHTO |
| PRS-SMLLD25 | Spare Brass Cup, for all Models |
Liquid Limit Device (Casagrande)
STANDARDS : ASTM D4318; BS 1377:2; AASHTO T89; TS 1900-1
Manual and Motorized Liquid Limit Apparatus (Casagrande) are used to determine the moisture content at which clay soils pass from plastic to liquid state.

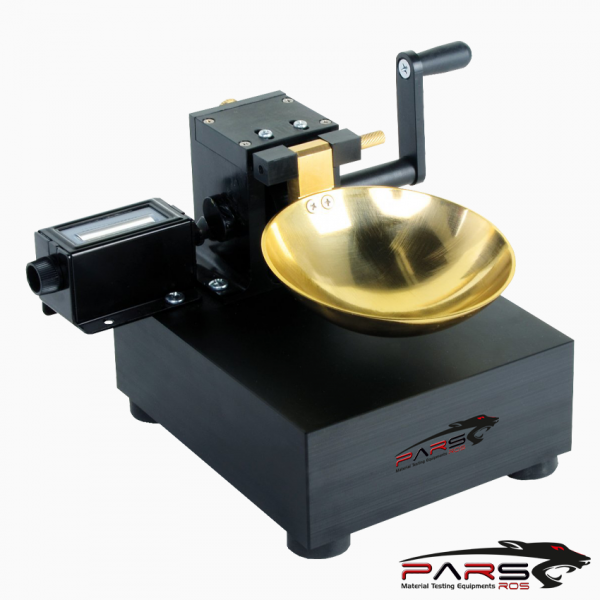

The Devices consist of an adjustable crank and cam mechanism, a blow counter and a removable brass cup fitted on the base.
Different models with the same shape but with different base and cup weights are available according to the required specifications.
*** Manual and Motorized versions are available.
PRS-SMLLD00 and PRS-SMLLD10 models are supplied with a BS type plastic grooving tool.
PRS-SMLLD02 and PRS-SMLLD12 models are supplied with a ASTM type plastic grooving tool.
*** Other types of grooving tools should be ordered separately.
Be the first to review “Liquid Limit Device (Casagrande)”
You must be logged in to post a review.
| Product Model | Manual | Motorized |
| Dimensions | 240x230x150 mm | 200x290x170 mm |
| Weight (approx.) | 2 kg | 4.2 kg |
