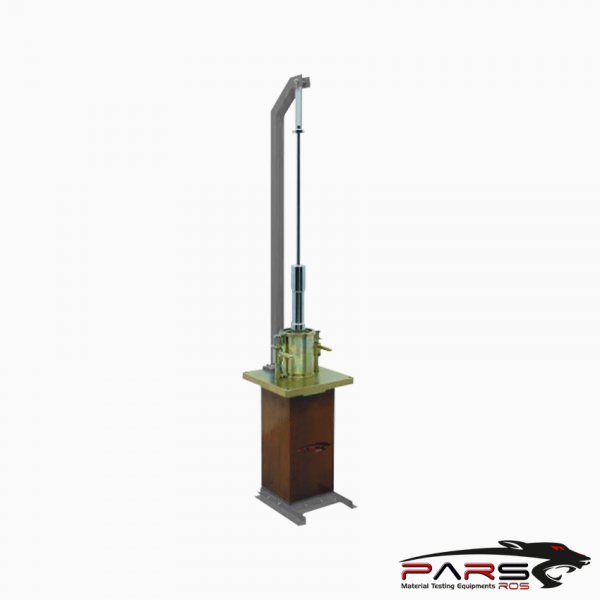

Marshall Manual Compaction Assembly
STANDARDS : ASTM D6926, D5581; AASTHO T245 (only for PRS-AS0071 ); BS-598
Marshall Manual Assemblies are used to prepare Marshall specimens manually.
The Compaction Assemblies consist of a Marshall Compaction Hammer and a Wooden Compaction Pedestal.
Please Contact With Us For More Information
- Description
- Reviews (0)
- TECHNICAL SPECIFICATIONS
Description
| Product Code | Product Description |
| PRS-ASF030 | Manual Marshall Compaction Assembly, 4”, ASTM |
| PRS-ASF031 | Marshall Compaction Hammer, 4” ASTM |
| PRS-ASF032 | Wooden Compation Pedestal, ASTM, |
| PRS-ASF034 | Marshall Compaction Hammer BS |
| PRS-ASF036 | Manual Marshall Compaction Assembly, 6”, ASTM |
| PRS-ASF037 | Marshall Compaction Hammer, 6”ASTM, |
| PRS-ASPMSB57 | Marshall Steel Block, Ø102 mm dia. and 50 mm height, |
| PRS-ASPMSB59 | Marshall Steel Block, Ø154mm dia. and 50 mm height, |
Marshall Manual Compaction Assembly
STANDARDS : ASTM D6926, D5581; AASTHO T245 (only for PRS-AS0071 ); BS-598
Marshall Manual Compaction Assembly is used to prepare Marshall specimens manually.
The Compaction Assemblies consist of a Marshall Compaction Hammer and a Wooden Compaction Pedestal.
*** The Pedestal supplied complete with steel plate, mould holder and hammer guide.
*** Marshall Steel Blocks are used for initial heating of the foot of compaction hammer should be ordered separately.
*** Manual Marshall Compaction Assembly is supplied complete with;
Wooden Compaction Pedestal
Hammer
Be the first to review “Marshall Manual Compaction Assembly”
You must be logged in to post a review.
| Product Code | Dimensions | Weight (approx.) |
| PRS-ASF030 | 350x400x1600 mm | 50 kg |
| PRS-ASF031 | 100x100x108 mm | 8 kg |
| PRS-ASF032 | 350 x400x1600 mm | 42 kg |
| PRS-ASF034 | 100x100x108 mm | 8 kg |
| PRS-ASF036 | 350x400x1600 mm | 57 kg |
| PRS-ASF037 | 100x100x108 mm | 14 kg |
| PRS-ASPMSB57 | 110x110x60 mm | 3,5 kg |
| PRS-ASPMSB59 | 160x160x60 mm | 7,5 kg |
