Micro Deval Test Machine
STANDARDS : EN 1097-1, 13450; NF P18-572, P18-576; CNR No.109; UNE 83115
Micro – Deval Machine is used to determine the resistance to wear of aggregates.
Please Contact With Us For More Information
- Description
- TECHNICAL SPECIFICATIONS
Description
| Product Code | Product Description |
| PRS-AMDA0400 | Micro Deval Test Machine , 220-240 V 50 Hz |
| PRS-AMDA0420/110 | Micro Deval Test Machine, 110 V 60 Hz |
| PRS-AMDA0421 | Stainless Steel Drum Ø 200×154 mm EN 1097-1 |
| PRS-AMDA0422 | Stainless Steel Drum Ø 200×400 mm EN 13450 |
| PRS-AMDA0423 | Micro Deval Abrasion Charges Ø10 mm 25 kg Pack, EN 1097-1 |

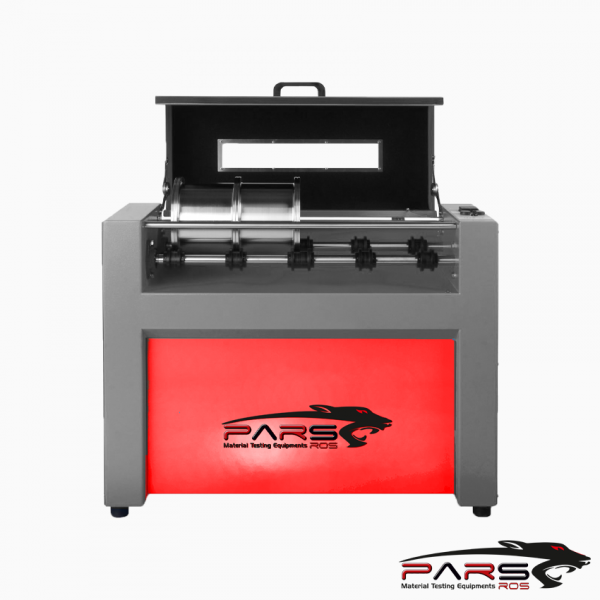

Micro – Deval Test Machine
STANDARDS : EN 1097-1, 13450; NF P18-572, P18-576; CNR No.109; UNE 83115
Micro Deval Test Machine is used to determine the resistance to wear of aggregates.

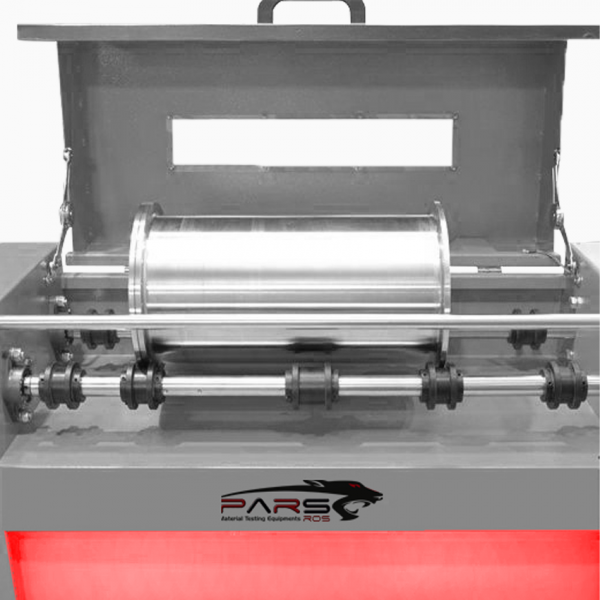

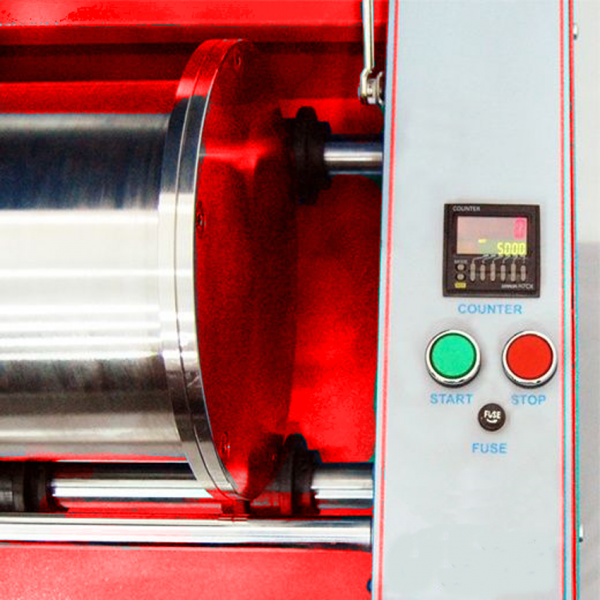

The machine consists of a steel frame, two stainless steel cylinders, and 25 kg of 10 mm diameter stainless steel spheres and an automatic digital counter which
allows machine to stop automatically at the preset number of revolutions.
Stainless steel drums are rotating at a speed of 100 ± 5 r.p.m.
The machine can accept up to 4 pcs. Ø 200×154 mm drums or 2 pcs. Ø 200×400 mm drums.
*** Micro – Deval Test Machine is supplied complete with;
Stainless Steel Drum, Ø 200×154 mm, 2 pcs.
Abrasion Charges, 25 kg, Ø 10mm
*** Ø 200×400 mm steel drums and 1,6 mm sieve should be ordered separately.
| Dimensions | 1100x400x1000 mm |
| Weight (approx.) | 140 kg |
| Power | 750 W |
