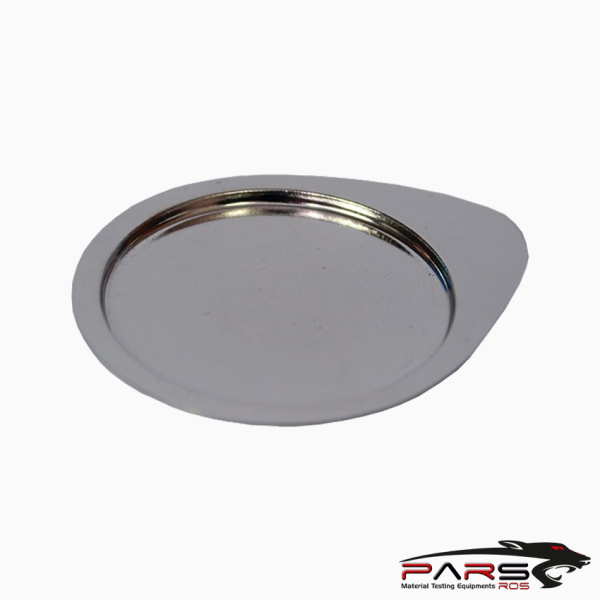

Platinum Crucible and Lid
Platinum Crucibles are designed to withstand hard and varied use.
Reinforced tops and bottoms can be supplied for added strength without adversely affecting capacity or fit of the cover.
Please Contact With Us For More Information
- Description
- TECHNICAL SPECIFICATIONS
Description
| Product Code | Product Description |
| PRS-CPLCUR5 | Platinum Crucible 5 mL |
| PRS-CPLCUR8 | Platinum Crucible 8 mL |
| PRS-CPLCUR10 | Platinum Crucible 10 mL |
| PRS-CPLCUR15 | Platinum Crucible 15 mL |
| PRS-CPLCUR20 | Platinum Crucible 20 mL |
| PRS-CPLCUR25 | Platinum Crucible 25 mL |
| PRS-CPLCUR30 | Platinum Crucible 30 mL |
| PRS-CPLCUR40 | Platinum Crucible 40 mL |
| PRS-CPLCUR50 | Platinum Crucible 50 mL |
| PRS-CPLCUR75 | Platinum Crucible 75 mL |
| PRS-CPLCUR100 | Platinum Crucible 100 mL |
Platinum Crucible and Lid
Platinum Crucibles are designed to withstand hard and varied use.
Reinforced tops and bottoms can be supplied for added strength without adversely affecting capacity or fit of the cover.
*** Non standard crucible sizes and lids are available upon request.
| Product Code | Capacity ( ml ) | Base Diameter ( mm ) | Up Diameter ( mm ) | Height ( mm ) | Base Thickness ( mm) | Crucible Weight ( gr ) | Lid Weight ( gr ) | Total Weight ( gr ) |
| PRS-CPLCUR5 | 5 | 12 | 19 | 25 | 0,30 | 8 | 2,5 | 9 |
| PRS-CPLCUR8 | 8 | 13 | 22 | 27 | 0,30 | 10 | 3,5 | 11 |
| PRS-CPLCUR10 | 10 | 14 | 24 | 28 | 0,30 | 11 | 3,5 | 12 |
| PRS-CPLCUR15 | 15 | 17 | 28 | 33 | 0,30 | 15 | 4 | 16 |
| PRS-CPLCUR20 | 20 | 18 | 30 | 35 | 0,35 | 20 | 5 | 22 |
| PRS-CPLCUR25 | 25 | 20 | 34 | 38 | 0,35 | 25 | 6 | 27 |
| PRS-CPLCUR30 | 30 | 22 | 36 | 40 | 0,40 | 30 | 7 | 33 |
| PRS-CPLCUR40 | 40 | 25 | 40 | 45 | 0,40 | 40 | 9 | 43 |
| PRS-CPLCUR50 | 50 | 27 | 45 | 48 | 0,45 | 52 | 10 | 56 |
| PRS-CPLCUR75 | 75 | 32 | 53 | 56 | 0,50 | 80 | 15 | 84 |
| PRS-CPLCUR100 | 100 | 35 | 56 | 60 | 0,55 | 100 | 20 | 105 |
