It is used for establishing the moisture-penetration resistance relation of finegrained soils.

Please Contact With Us For More Information

Category: Tags: , , ,

Description

Product Code Product Description
PRS-SPRP0820 Spring Type Proctor Penetrometer
PRS-SPRP0821 Needle Set

(28.55, 24.79, 20.22, 16.54, 12.83, 9.07, 6.40, 5.23 and 4.52 mm diameters)



Proctor Penetrometer

STANDARDS : ASTM D1558

Penetrometer is used for establishing the moisture-penetration resistance relation of finegrained soils.

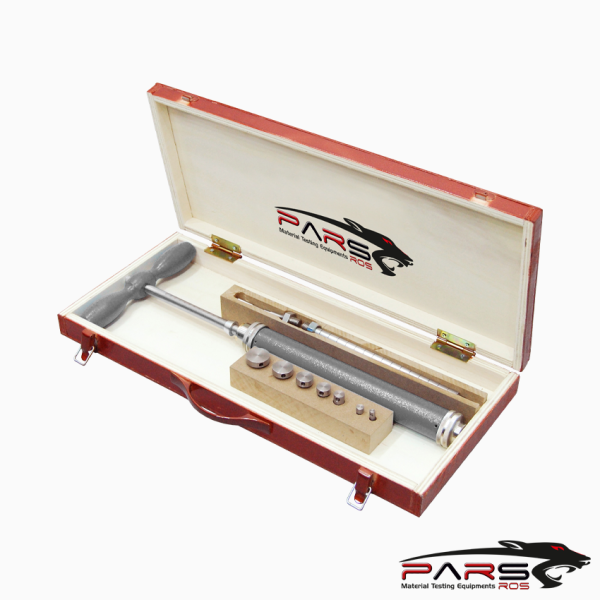

The apparatus consists of a spring loading device which is graduated from 10 to150 lbf in 2 lbf subdivisions.

Needle Set  consists of interchangeable needle points of 28.55, 24.79, 20.22, 16.54, 12.83, 9.07, 6.40, 5.23, 4.52 mm diameters  and a carrying case.

Dimensions 540x260x60 mm
Weight (approx.) 5 kg
