Riffle Boxes
STANDARDS : EN 932-2; ASTM C702; BS 812:1, 1377:1, 1924:1
They are used for dividing aggregates into 2 equal homogenous quantity for testing.
Please Contact With Us For More Information
- Description
- TECHNICAL SPECIFICATIONS
Description
| Product Code | Product Description |
| PRS-ARB0300 | Riffle Box 7 mm |
| PRS-ARB0301 | Riffle Box 13 mm |
| PRS-ARB0302 | Riffle Box 15 mm |
| PRS-ARB0303 | Riffle Box 19 mm |
| PRS-ARB0304 | Riffle Box 25 mm |
| PRS-ARB0305 | Riffle Box 30 mm |
| PRS-ARB0306 | Riffle Box 38 mm |
| PRS-ARB0307 | Riffle Box 45 mm |
| PRS-ARB0308 | Riffle Box 50 mm |
| PRS-ARB0309 | Riffle Box 64 mm |
| PRS-ARB0310 | Riffle Box 75 mm |

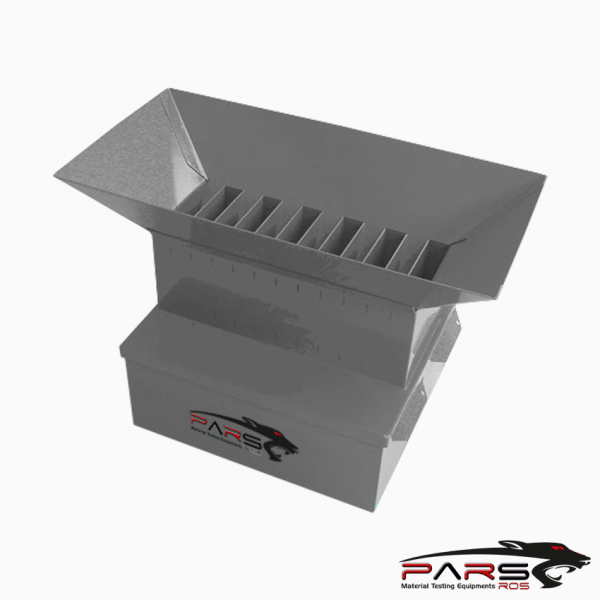

Riffle Boxes
STANDARDS : EN 932-2; ASTM C702; BS 812:1, 1377:1, 1924:1
Riffle boxes are used for dividing aggregates into 2 equal homogenous quantity for testing.
The Box is electrostatically painted and manufactured to meet the relevant International standard both in the slot width and number of slots.
*** Riffle Box is supplied complete with;
Containers with Handles – 3 pcs
| Product Code | Aperture | Number of Slots | Weight | Dimensions |
| PRS-ARB0300 | 7 mm | 12 | 2 kg | 130x180x180 mm |
| PRS-ARB0301 | 13 mm | 12 | 6 kg | 200x250x350 mm |
| PRS-ARB0302 | 15 mm | 12 | 6.5 kg | 200x290x350 mm |
| PRS-ARB0303 | 19 mm | 10 | 11 kg | 220x310x400 mm |
| PRS-ARB0304 | 25 mm | 10 | 9 kg | 250x350x420 mm |
| PRS-ARB0305 | 30 mm | 10 | 15 kg | 230x420x450 mm |
| PRS-ARB0306 | 38 mm | 8 | 16 kg | 320x430x570 mm |
| PRS-ARB0307 | 45 mm | 8 | 20 kg | 320x450x590 mm |
| PRS-ARB0308 | 50 mm | 8 | 20 kg | 320x500x600 mm |
| PRS-ARB0309 | 64 mm | 8 | 32 kg | 360x600x600 mm |
| PRS-ARB0310 | 75 mm | 8 | 35 kg | 370x700x600 mm |
