Speedy Moisture Testers

Product Code	Product Description
PRS-ASMTS6	Standard Speedy  Moisture Tester,6g
PRS- ASMTS12	Standard Speedy Moisture Tester,12g
PRS- ASMTL8	Large Speedy Moisture Tester,8g
PRS- ASMTL20	Large Speedy Moisture Tester,20g



Speedy Moisture Testers

STANDARDS : AASHTO T 217 , ASTM D4944 , FM 5-507

Speedy Moisture Testers are widely accepted for rapid, accurate, and reliable moisture tests on materials such as sand, aggregates, ores, coal, soils, ceramics,

abrasives, and other powders.

!!!  The Speedy moisture testers are portable, easy to use and do not require a power supply.

Samples can be tested on-site in minutes, eliminating the risk of moisture loss during transport.

Place a weighed sample in the tester with a measured quantity of Calcium Carbide Reagent and seal with the cap.

Upon agitation, free moisture in the test sample reacts with calcium carbonate to form acetylene gas.

The pressure gauge reads directly in percent moisture by weight within 1—3 minutes.

Moisture ranges can be doubled for all models by using 1/2 specimen weight and multiplying gauge reading by two.

*** Testers are available in four different models based on sample material, percent moisture range, and desired gauge accuracy.

Each tester comes as a kit that contains testing components needed for moisture testing.

All units have a tough, die-cast polished aluminum pressure chamber with an integral dial gauge.

---

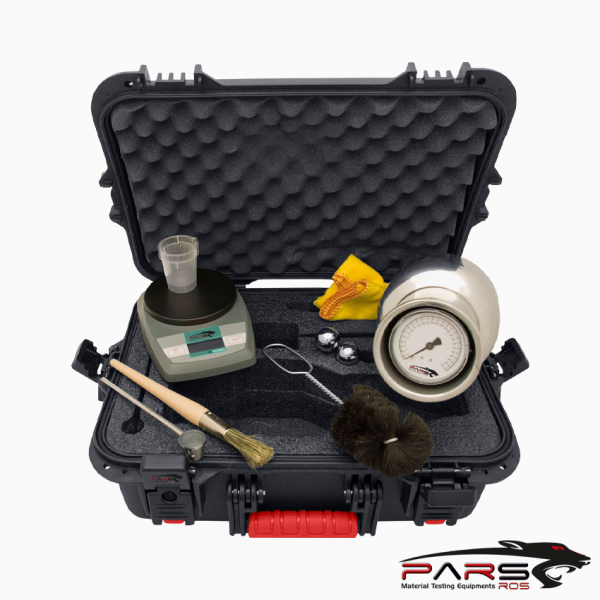

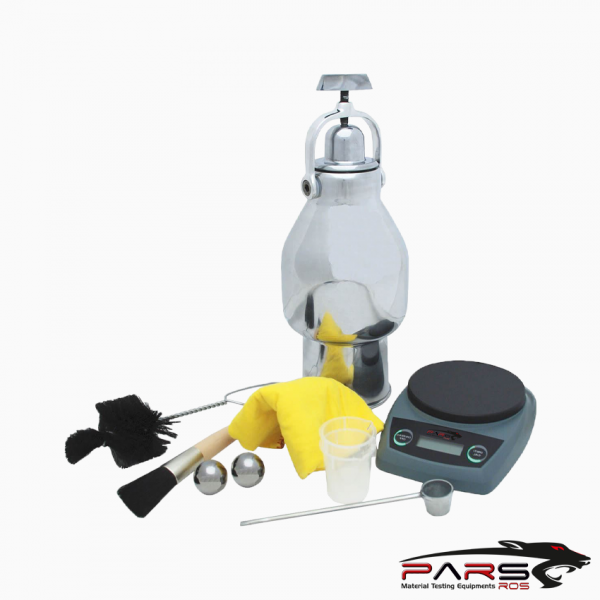

Each Speedy  kit includes

Electronic balance,

Reagent measuring scoop,

Brush,

Cleaning cloth, and instructions in a heavy-duty

Waterproof case.

---

Standard Speedy Moisture Testers units are used for sand, grains, clays, and fine powders. Both have a maximum particle size of 10mm.

PRS- ASMTS12      has a moisture range of 0—10% x 0.1% and a specimen weight of 12g

PRS- ASMTS6      has a moisture range of 0—20% x 0.2% and a specimen weight of 6g

---

Large Speedy Moisture Testers are designed for testing soils, aggregates, coal, and ores with particle sizes up to 20mm.

The Large Speedy Moisture Tester kits also include two Pulverizing Steel Balls for pulverizing the specimens.

PRS- ASMTL20  has a moisture range of 0—20% x 0.2% and a specimen weight of 20g which is in accordance with ASTM and AASHTO standards for soil

moisture measurements.

PRS- ASMTL8 has a moisture range of 0—50% x 0.5% and a specimen weight of 8g

---

Features

A fast, accurate proven method for moisture testing on many material types

Portable, easy to operate, and no power supply required

Reduced risk of moisture loss during transport

---

Included Items

Standard or Large Speedy Moisture Testers

Electronic digital balance

Reagent measuring scoop

Brush

Cleaning cloth

Instructions

Two steel pulverizing balls (PRS- ASMTL20  and PRS- ASMTL8 only)
