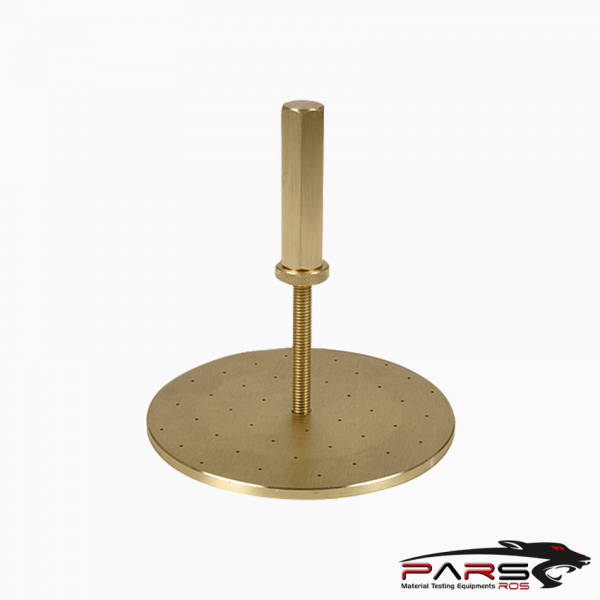

Swell Plate for CBR Swelling Test
STANDARDS : EN 13286-47; ASTM D1183; AASHTO T193; BS 1377:4, 1924:2
Swell Plate is used to monitor the swelling by placing it on top of the soil sample.
Please Contact With Us For More Information
- Description
- Reviews (0)
- TECHNICAL SPECIFICATIONS
Description
| Product Code | Product Description |
| PRS-SSP0680 | Swell Plate for CBR Swelling Test |
| PRS-SSP0682 | Tripod for CBR Swelling Test |
| PRS-SAG0220 | Analog Gauge 30 mm travel x 0.01 mm division |
| PRS-SDG0220 /1 | Digital Dial Gauge 25×0,01 mm, LCD Display Data Output |
| PRS-SDG0220 /2 | Digital Dial Gauge 12,7×0,001 mm, LCD Display Data Output |

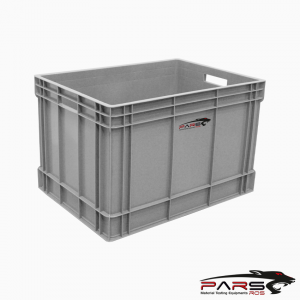

| PRS-SSP0684 | CBR Soaking Tank (6 pcs. CBR Mould Capacity ) |
Swell Plate for CBR Swelling Test
STANDARDS : EN 13286-47; ASTM D1183; AASHTO T193; BS 1377:4, 1924:2
This equipment is used to monitor the swelling by placing it on top of the soil sample.

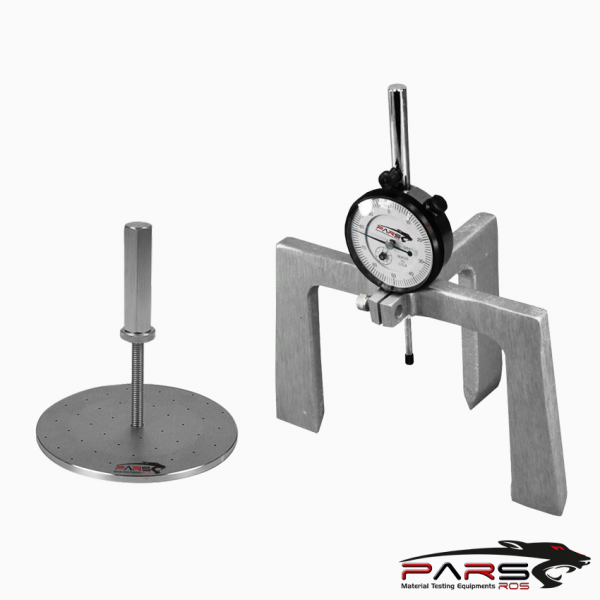

The swell test consists of perforated plate (swell plate) with adjustable stem, dial gauge and dial gauge tripod for mounting swell dialgauge in position on
CBR Mould Collar.
*** The prefered gauge and each other equipment should be ordered separately for swelling test.
Be the first to review “Swell Plate for CBR Swelling Test”
You must be logged in to post a review.
| Product Code | Dimensions | Weight |
| PRS-SSP0680 | 180x180x160 mm | 2.5 kg |
| PRS-SSP0682 | 200x200x300 mm | 1 kg |
| PRS-SAG0220 | 150x100x80 mm | 0.5 kg |
| PRS-SSP0684 | 500x700x400 mm | 3 kg |
