Tell Tale Monitors

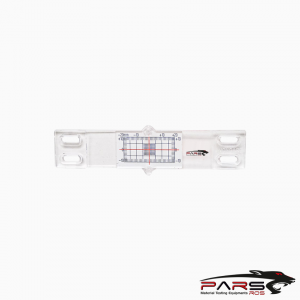

Standard Tell-Tales are precision gauges that consist of two plates which overlap for a part of their length.
Thebottom plate is calibrated in milli-metres and the top plate is transparent and marked with a hairline cursor
in the form of a cross.
- Description
- Reviews (0)
- TECHNICAL SPECIFICATIONS
Description
| Product Code | Product Description |
| PRS-BCATOCD | Standard Tell-Tale Monitor |
| PRS-BCATOCA | Displacement Tell-Tale Monitor |
Standard Tell-Tales are precision gauges that consist of two plates which overlap for a part of their length.
Thebottom plate is calibrated in milli-metres and the top plate is transparent and marked with a hairline cursor in the form of a cross.
*** Supplied with full instructions and Crack Record Sheet.
The Displacement Tell-Tale monitors horizontal and displacement movement where there is a “step” across a crack due to displacement or “out of plane”
movement.
*** The Tell-Tale consists of three components.
A base plate (not calibrated) a top plate (which is calibrated) and a graduated ruler. The ruler is not left on the gauge
but is used to measure the relative movement in the two plates.
Be the first to review “Tell Tale Monitors”
You must be logged in to post a review.
Displacement Tell-Tale
Calibrated in millimetres.
Displacement monitoring range of 110mm.
Horizontal monitoring range of -10mm to +50mm.
Fix using Screws and Adhesive (not included )
Supplied with full instructions and Crack Record Sheet.
