Vibratory Disc Mill

Description

Product Code	Product Description
PRS–CMPHO	Vibratory Disc Mill

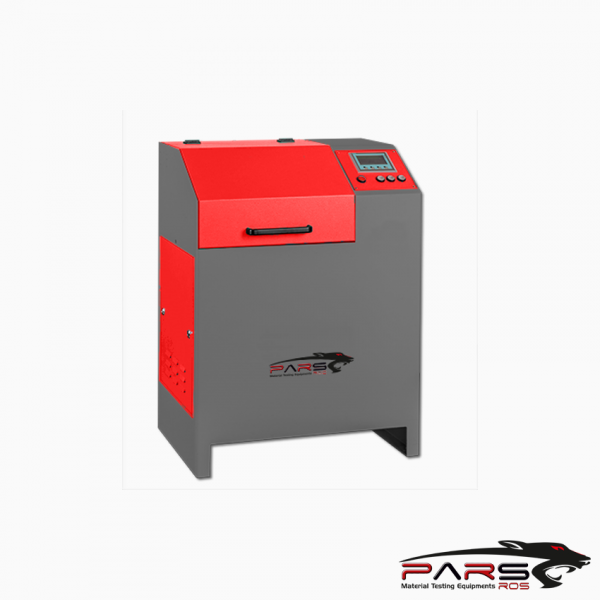

Vibratory Disc Mill

ParsRos Vibratory Disc Mill is suitable for pulverizing of minerals, slags, ferroalloys and other basic material.

The high-speed of the drive motor enables the grinding of even hard materials with short process times.

Automatic TFT Touch Control Unit

Dust and noise burden is reduced, and safety enhanced

The Machine is fully encapsulated, insulated against noise, and has safety cutouts for operator protection.

The pulverizing parameters of the Vibratory Disc Mill are controlled by a PLC program.

This allows an easy operation of the machine and complete flexibility in selection of processing parameters.

A wide variety of different sizes and materials can be selected for the grinding vessels – according to the requirements of the customer

---

Features

Depending on the sample type and hardness, a test between 75 – 150 microns can be taken as a result of variable co-grinding.

A grinding cell is provided with the device.

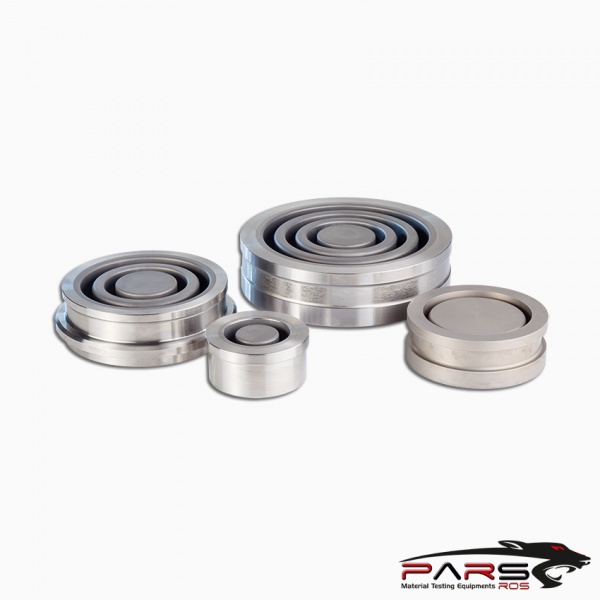

There are 3 different capacity grinding cells as 50 cc, 100 cc and 250 cc.

Made of Grinding Hardened steel.

The device is covered with sound insulation material to reduce noise during operation.

The device is fixed 1500 rpm and can be designed as variable speed as an option.

---

Optional Accessories

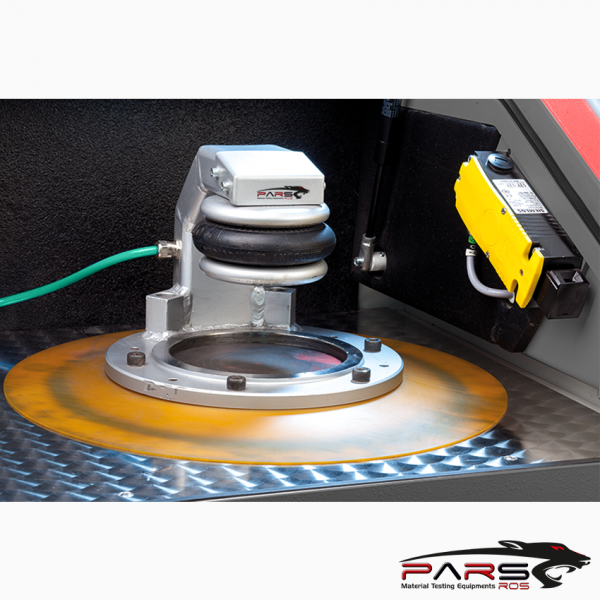

Pneumatic clamping device

Grinding vessel chromium steel (50, 100, 250 ccm), Tungsten carbide ( 50, 100,250 ccm),

Air Compressor

Dimensions ( Approx.)	550 x 750 x 1000 mm
Weight ( Approx. )	250 kg
Power	380 V 50 Hz
